Omada (EAP211-Bridge KIT) 5GHz 867Mbps Indoor/Outdoor Wireless Bridge
RM699

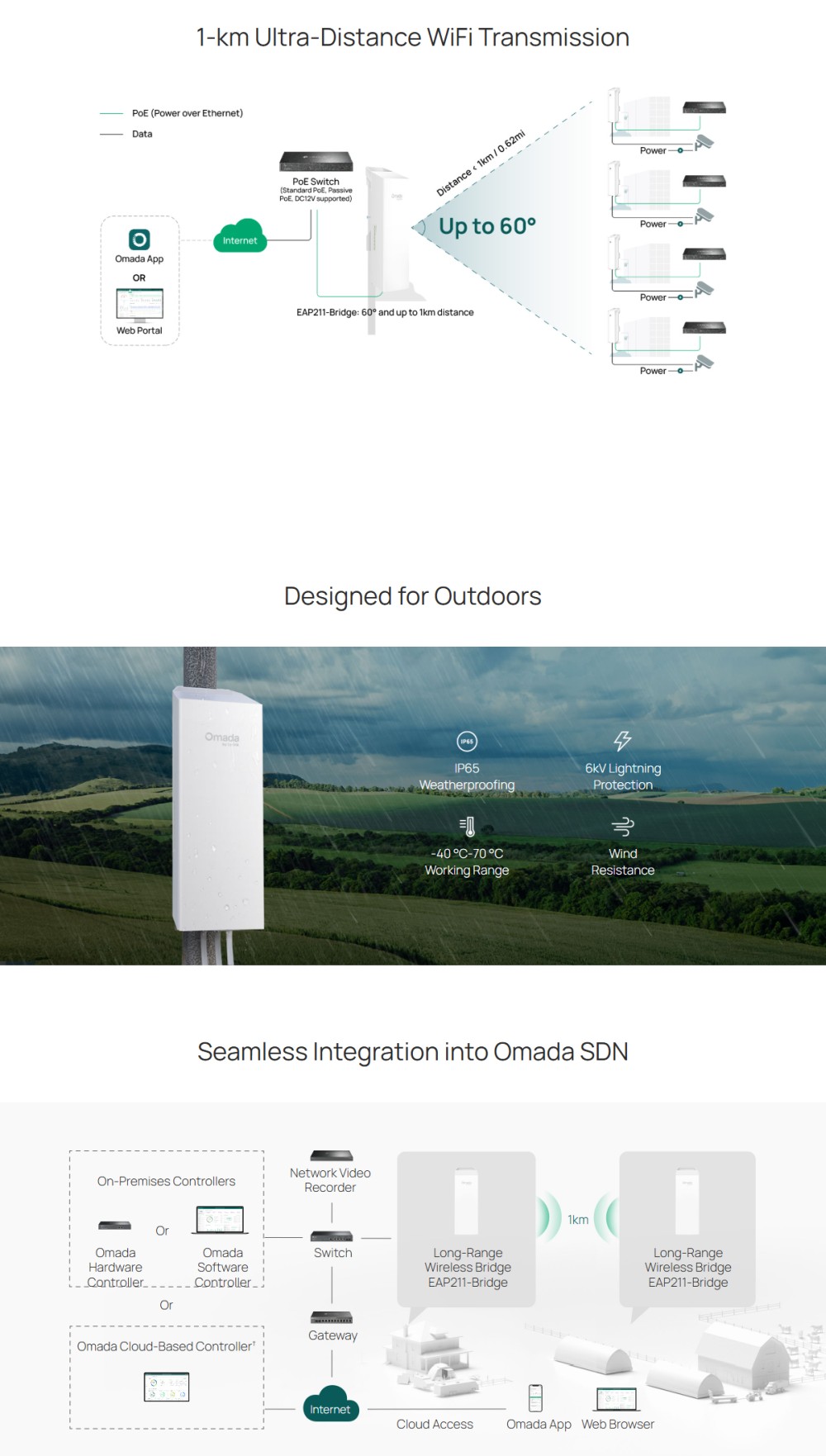

- Up to 0.62 mi (1 km) Transmission Distance: Ideal for long-range wireless transmission.
- Plug-and-Play Setup: Supports auto-pairing and LED signal indicator for efficient deployment and role switch for flexible AP modes switching.
- Flexible Power Supply: Supports 802.3af PoE, 24V Passive PoE, and 12V DC (compatible with TP-Link solar power supply system) for versatile deployment.
- 3× Gigabit Ethernet Ports: Connects more cameras and devices without an extra switch.
- Efficient Management: Supports Standalone mode or Omada SDN mode for remote centralized management via Web UI or App.
- Ideal for Outdoor Scenarios: IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability, with a reliable operating range of -40 °C to +70 °C
Available on backorder
62
People watching this product now!
Description
Reviews (0)
Only logged in customers who have purchased this product may leave a review.
Specifications
| HARDWARE FEATURES | |
|---|---|
| Interface | 3x Gigabit Ethernet Ports |
| Button | Reset |
| DIP Switch | Role Switch |
| Power Supply | 12V DC / 802.3af PoE / 24V Passive PoE |
| Max. Power Consumption | 11.5W |

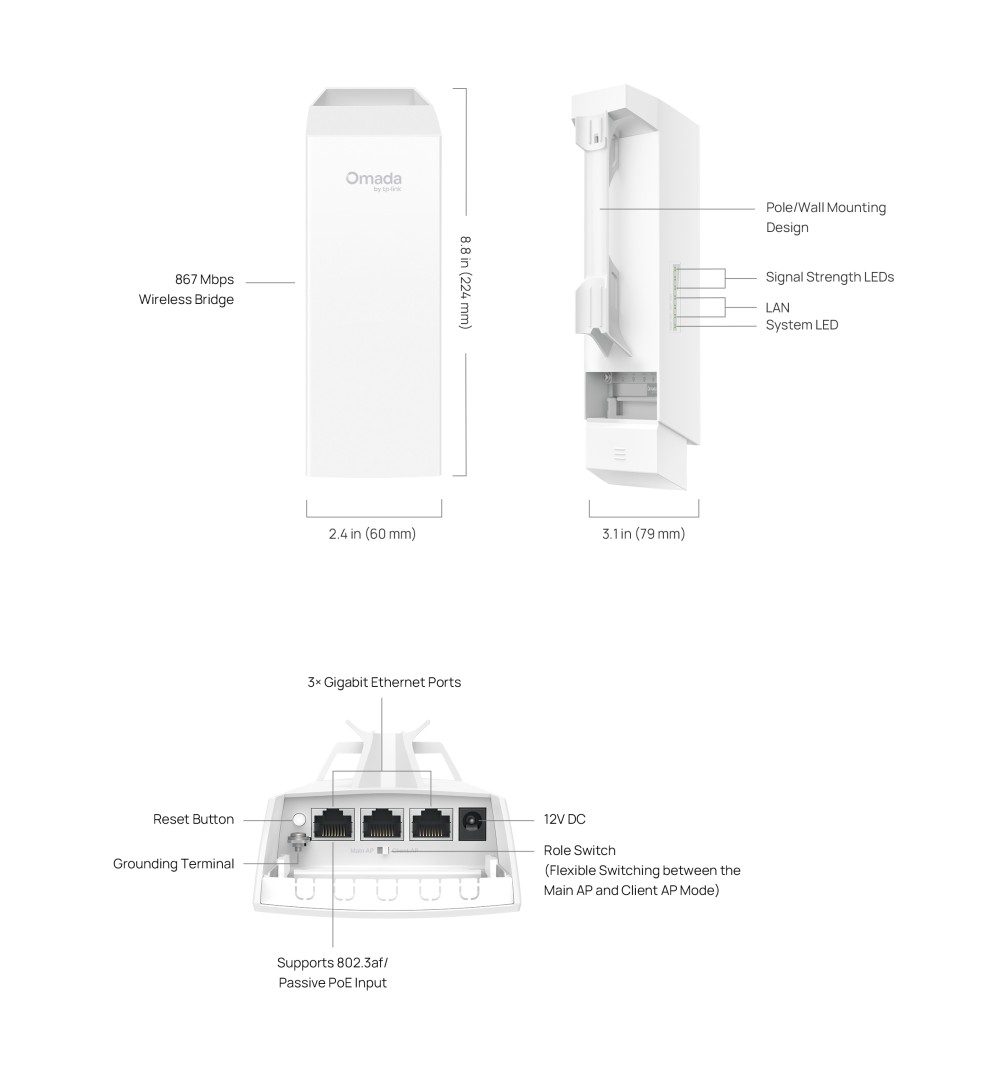

| Dimensions ( W x D x H ) | 8.8 × 3.1 × 2.4 × in (224 × 79 × 60 mm) |
| Antenna | Internal 2×2 Dual-polarized directional MIMO antennas 5 GHz: 10.0 dBi Horizontal:60°, Vertical: 30° |
| Weatherproof Enclosure | IP65 |
| Mounting | Pole and wall mounting ( Pole accessories included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 1000m(3280ft)* |
| Wireless Standards | IEEE 802.11 a/n/ac |
| Frequency | 5 GHz |
| Signal Rate | 5 GHz: Up to 867 Mbps§ |
| Wireless Functions | • MU-MIMO: 5G 2x2 MU-MIMO DL • Multiple SSIDs:8 • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • Static IP/Dynamic IP • Rate Limit • Guest Network • Enable/Disable Wireless Radio • Enable/Disable SSID Broadcast |
| Wireless Security | • VLAN • Rogue AP Detection • Maximum number of MAC Filter: 4,000 • Wireless Encryption |
| Transmission Power | • CE: <23dBm (5 GHz, band 1/2, EIRP); <30dBm (5 GHz, band3, EIRP)• FCC: <23dBm (5 GHz, band1) <25dBm (5 GHz, band4) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Hardware Controller • Omada Software Controller • Omada App |
| Cloud Access | Yes. Require the use of Omada Controllers. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| SNMP | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| Zero-Touch Provisioning | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • EAP211-Bridge KIT • Installation Guide • Mounting Kit |
| Lightning Protection | • Air discharge: ±8kV • Contact discharge: ±4kV • Common mode 10/700: ±6kV |
| Environment | • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing |
