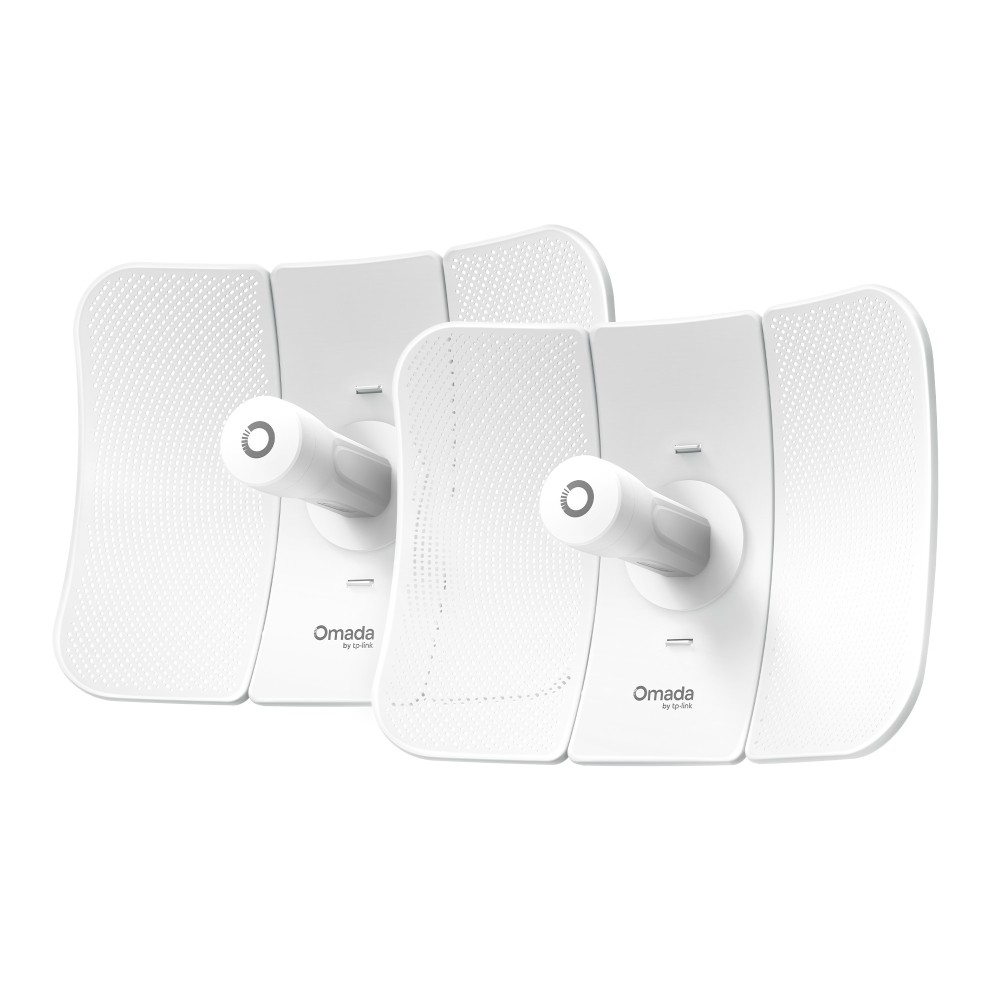

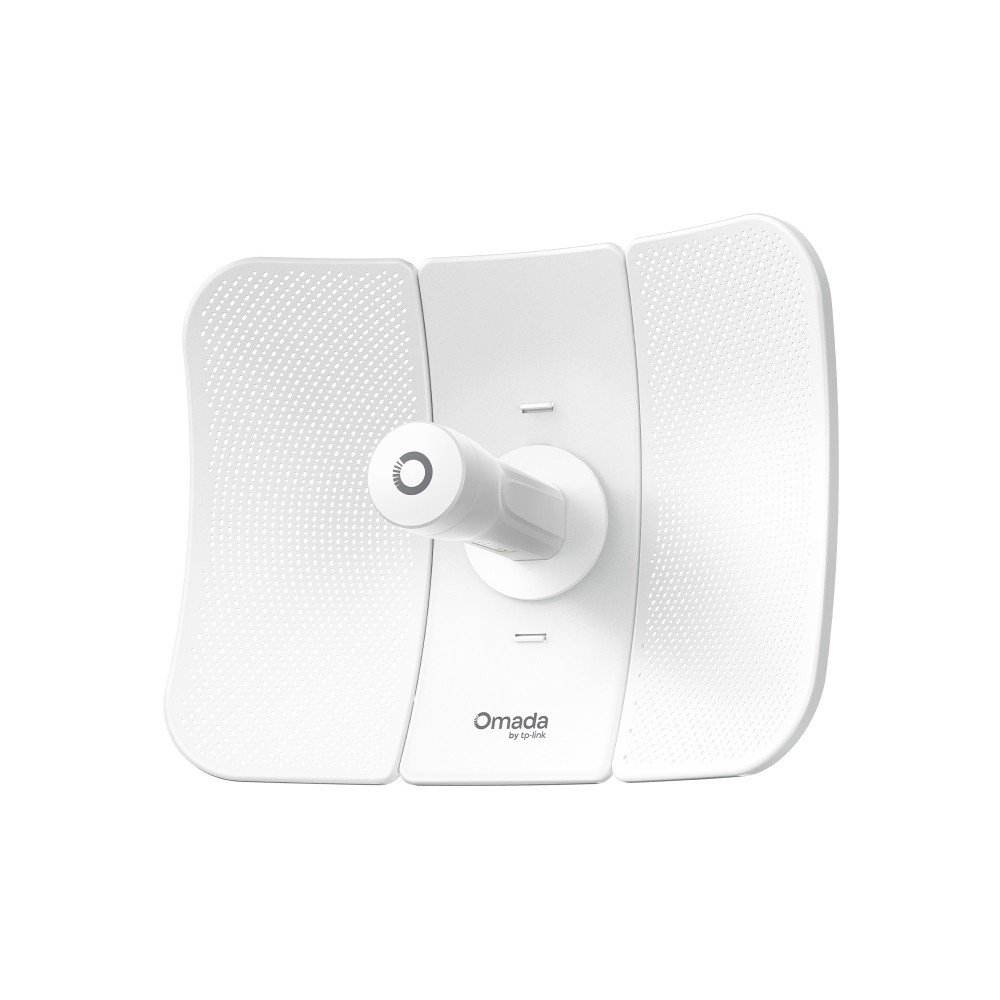

Omada (Beam Bridge 5 UR KIT ) 5GHz 867Mbps Ultra-Range Indoor/Outdoor Wireless Bridge
RM1,199
- Business-Grade up to 9.3 mi (15 km) Ultra-Range Wireless Transmission: With 23dBi high-gain directional antennas.
- Plug-and-Play with Preconfigured Kit: Preconfigured for instant PtP auto-pairing, the bridges deliver instant connectivity right out of the box.
- App-Guided Alignment: Visualized app-guided alignment for long-distance setups and instant speed testing for installation verification.

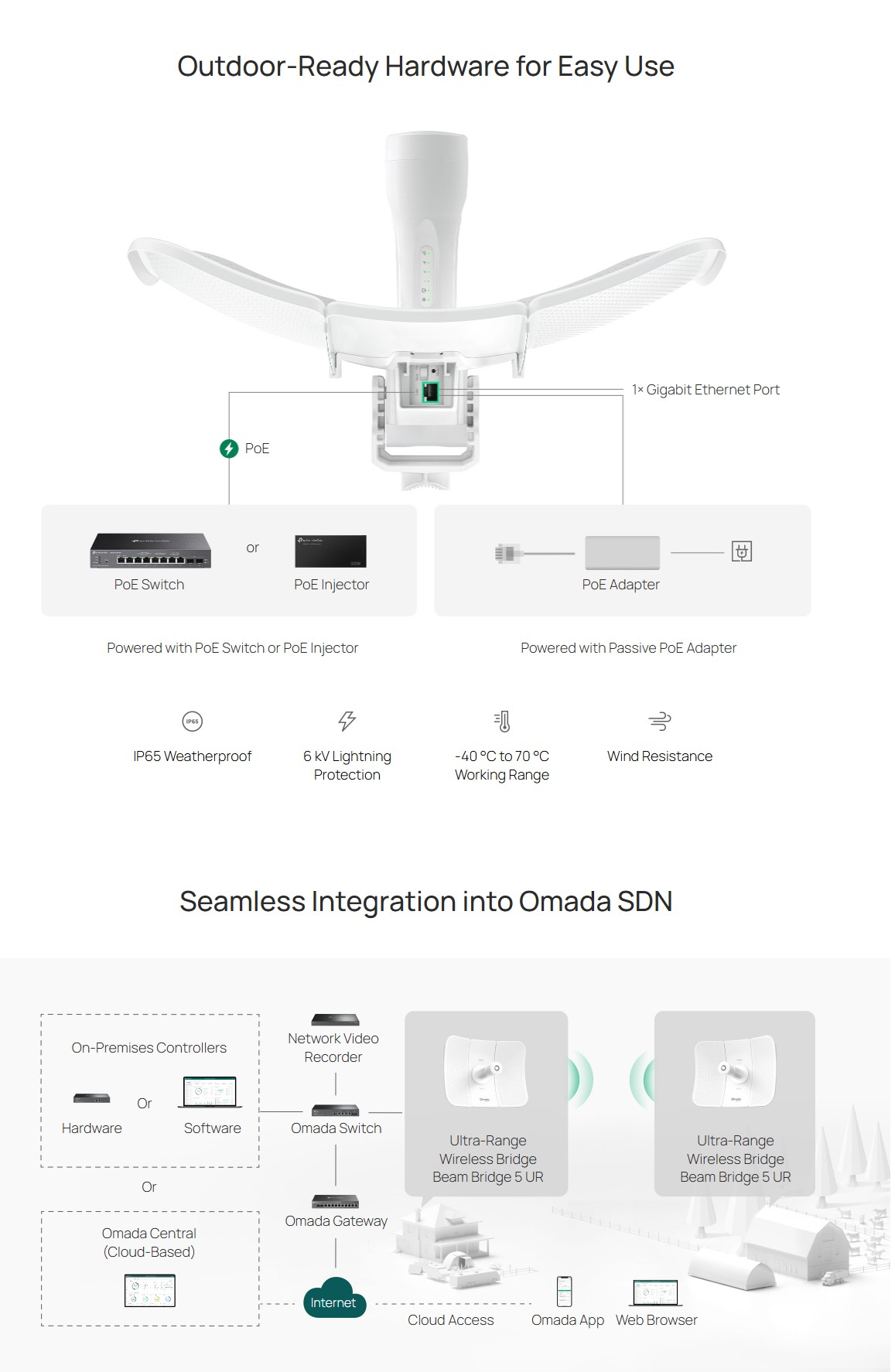

- Simple PoE Deployment and Power Supply: 1× Gigabit PoE port supports both 802.3af PoE and Passive PoE for simplified wiring and lower deployment costs.
- Designed for Outdoor Durability & Reliability: IP65 weatherproof enclosure, 6 kV lightning protection and operating range of -40 °C to +70 °C.
- Remote Monitoring & Management: Standalone mode or Omada SDN mode for remote centralized management via Web UI or App
Available on backorder
25
People watching this product now!
Description
Reviews (0)
Only logged in customers who have purchased this product may leave a review.
Specifications
| HARDWARE FEATURES | |
|---|---|
| Interface | 1 x 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE In |
| Button | 1 × Reset Button 1 × System Mode Selection Button |
| DIP Switch | Role Switch |
| Power Supply | 802.3af PoE (1,2pins; 3,6pins) 24V or 48V Passive PoE (+4,5pins; -7,8pins) (Passive PoE Adapter Included) |
| Max. Power Consumption | 15.8W |
| Dimensions ( W x D x H ) | 14.4 × 11.0 × 8.1 in (366 × 280 × 207 mm) |
| Antenna | External 2×2 Dual-Polarized Directional MIMO Antennas 5 GHz: 23 dBi |
| Antenna Beamwidth | Horizontal: 9°, Vertical: 7° |
| Weatherproof Enclosure | IP65 |
| Bandwidth | 5 GHz: 20 MHz/40 MHz/80 MHz |
| Mounting | Pole Mounting (Kits Included) |
| WIRELESS FEATURES | |
|---|---|
| PtP | Yes |
| Transmission Distance | 15 km (9.3 mi) |
| Wireless Standards | IEEE 802.11 a/n/ac |
| Frequency | 5 GHz |
| Signal Rate | 5 GHz: Up to 867 Mbps |
| Wireless Functions | • MU-MIMO: 5G 2x2 MU-MIMO DL • Maximum number of associated STAs: 8 • Speed Test • Channel Optimization • Antenna Alignment • ACS (Automatic Channel Selection) • Rate Limit • Guest Network |
| Wireless Security | • VLAN • Rogue AP Detection • Maximum number of MAC Filter: 4,000 • Wireless Encryption |
| Transmission Power | • CE: <23 dBm (5 GHz, U-NII-1/2A, ERIP) <30 dBm (5 GHz, U-NII-1/2C, ERIP)• FCC: <27 dBm (5 GHz, U-NII-1) <27 dBm (5 GHz, U-NII-3) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Central (Cloud-Based) • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| SNMP | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| Zero-Touch Provisioning | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • Beam Bridge 5 UR KIT • Installation Guide • Mounting Kit • Passive PoE Adapter • Power Cord |
| Lightning Protection | Ethernet Ports: ±6 kV |
| Environment | • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing |
| Weight | 1.1 kg (2.43 lb) |

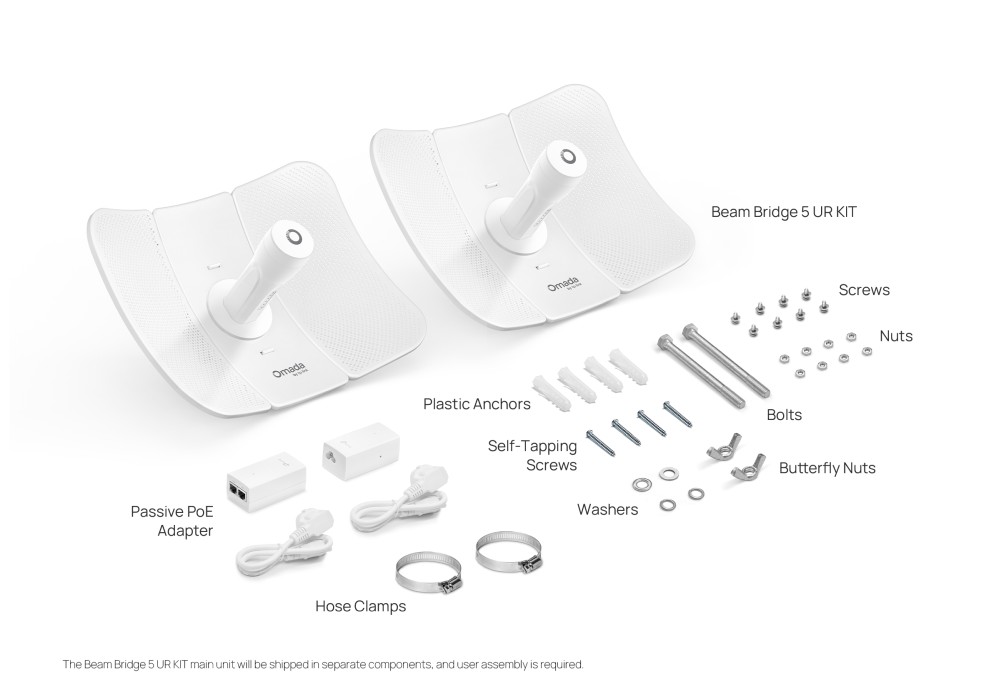

Whats in the box

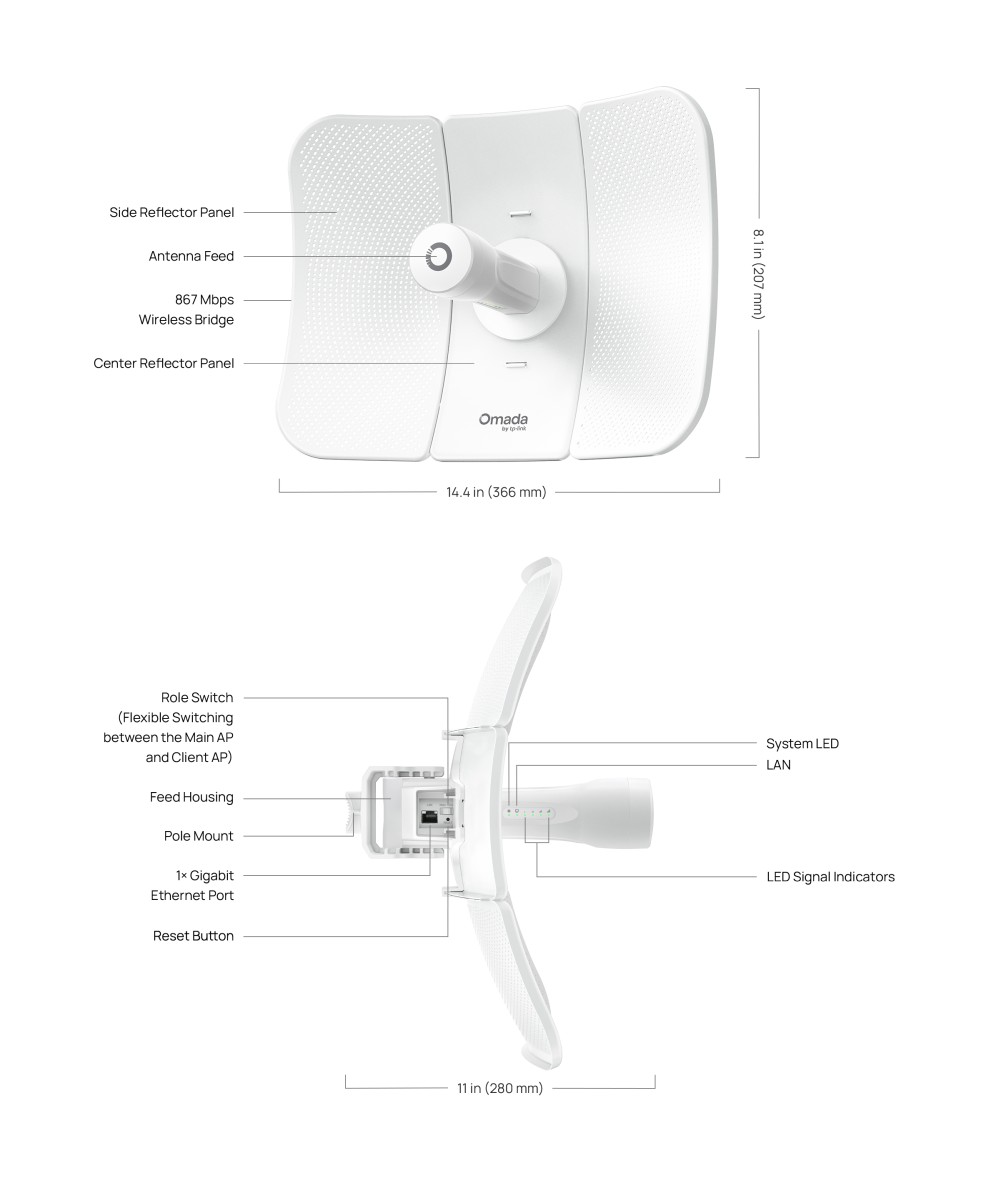

Build Features
