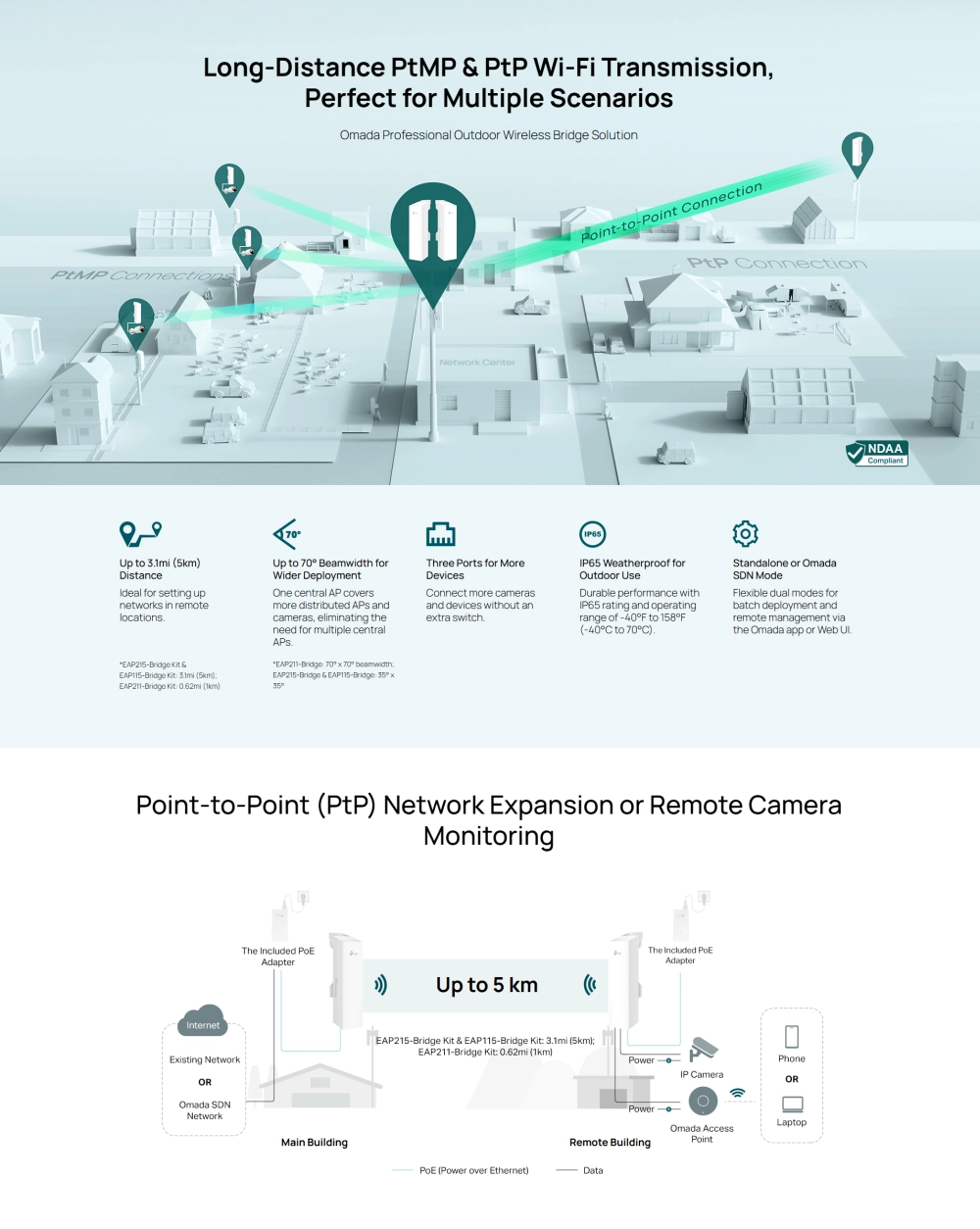

Omada (EAP115-Bridge KIT) Wireless Bridge 5 GHz 300 Mbps Long-Range Indoor/Outdoor Access Point
RM599
- 802.11n for up to 300 Mbps on the 5 GHz wireless data rate.

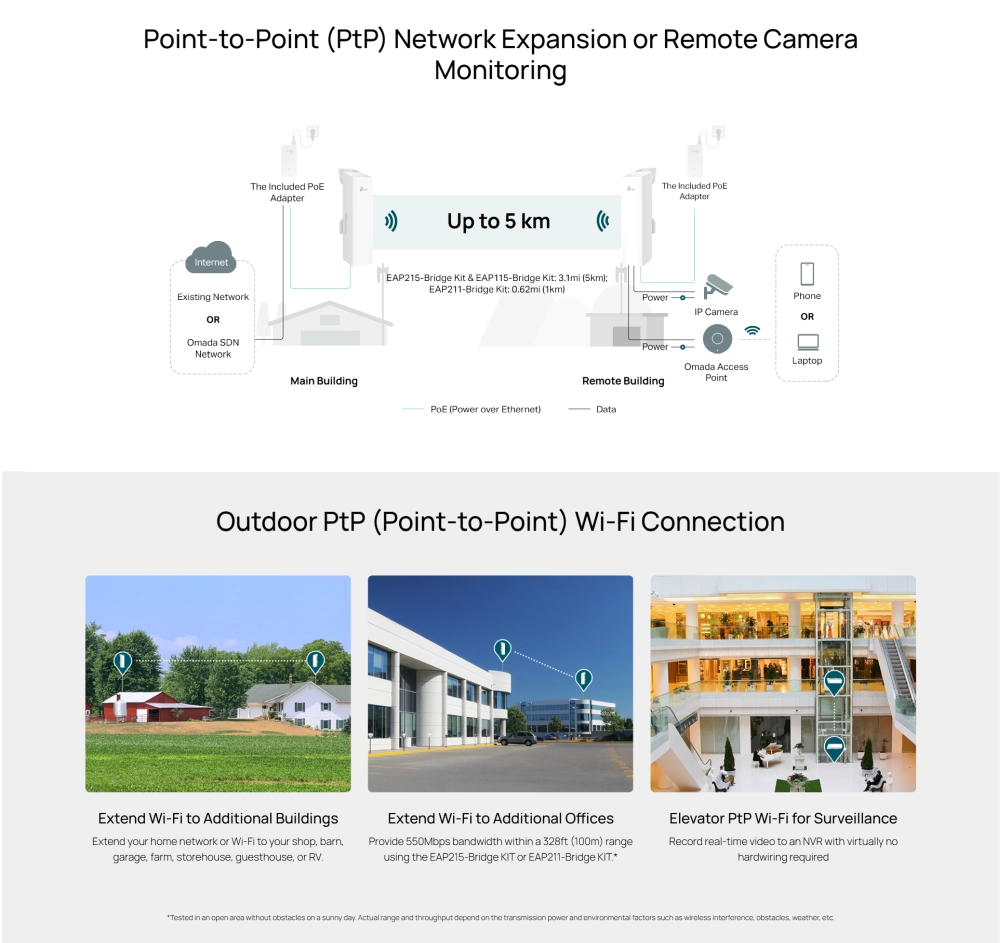

- Ideal for long-range wireless transmission up to 5 km.

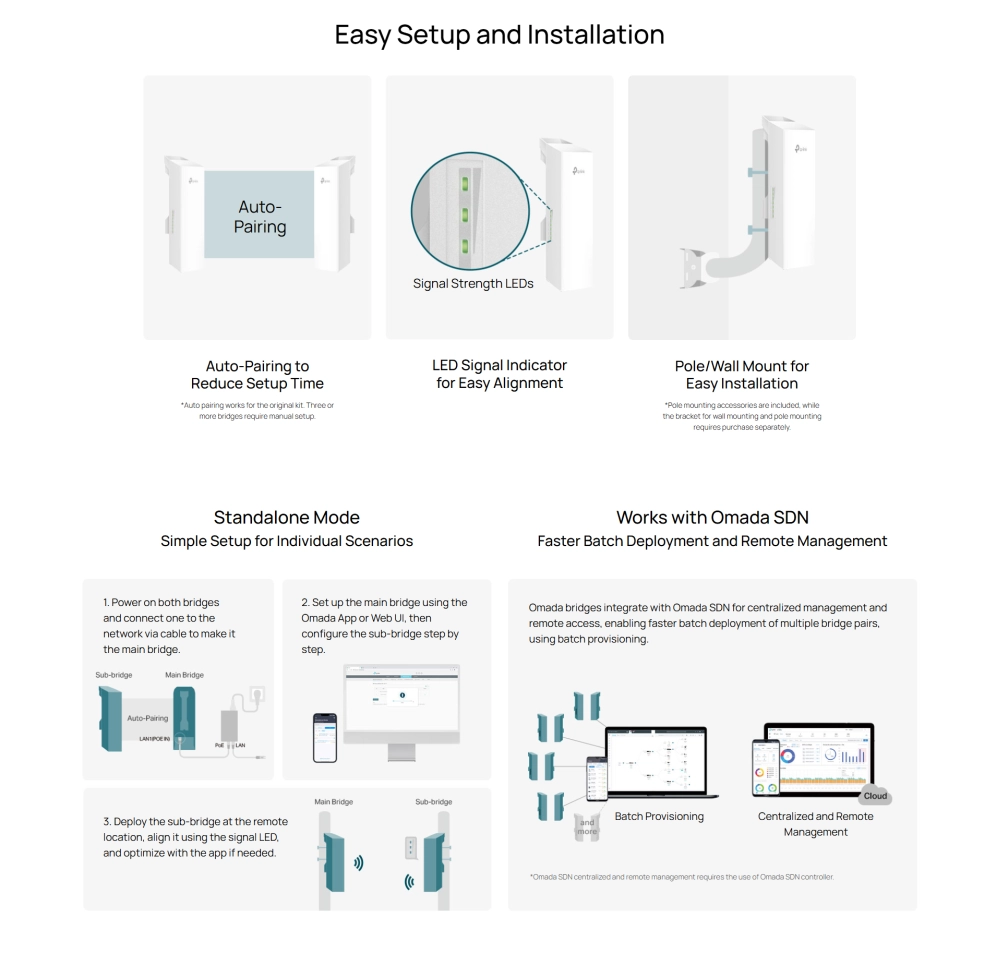

- Auto-pairing and agile LEDs for efficient deployment.
- 3× 10/100 Mbps Ethernet ports for more high-speed IP camera connections.
- Supports Omada SDN for remote and centralized management.
- IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.
- Supports Passive PoE for flexible deployment (adapter included).
Available on backorder
18
People watching this product now!
Description
Reviews (0)
Only logged in customers who have purchased this product may leave a review.
Specifications
| HARDWARE FEATURES | |
|---|---|
| Interface | 3x 10/100 Mbps Ethernet Ports*6 |
| Button | Reset |
| Power Supply | 12V DC / 24V Passive PoE (Passive PoE adapter included.) |
| Max. Power Consumption | 6.5W |

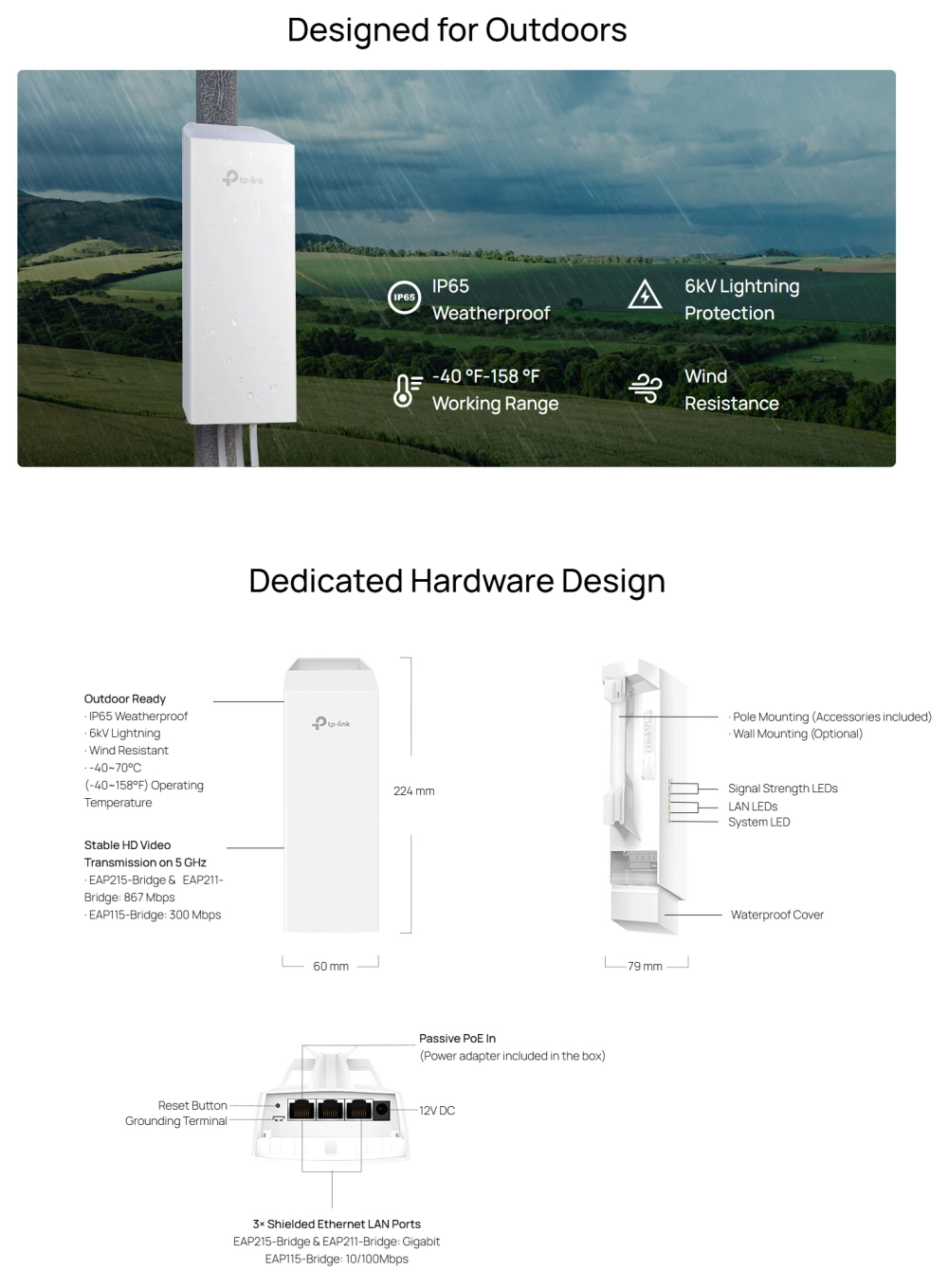

| Dimensions ( W x D x H ) | 3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm) |
| Antenna | Internal 2×2 Dual-polarized directional MIMO antennas 5 GHz: 11.0 dBi Horizontal:35°, Vertical: 35° |
| Weatherproof Enclosure | IP65 |
| Mounting | Pole mounting (Accessories included) |
| WIRELESS FEATURES | |
|---|---|
| PtP | Yes |
| PtMP | Supports up to 1:4 multi-bridge connections. |
| Coverage | 5000m(16400ft)5 |
| Transmission Distance | 5,000 m (3.1 mi)5 |
| Wireless Standards | IEEE 802.11 a/b/g/n |
| Frequency | 5 GHz |
| Signal Rate | 5 GHz: Up to 300 Mbps |
| Wireless Functions | • Mesh*4 • Load Balance • Beamforming • Airtime Fairness • Multiple SSIDs:8 • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • MAC Authentication • Static IP/Dynamic IP |
| Wireless Security | • VLAN • Access Control • Rogue AP Detection • Captive Portal Authentication*4 • Maximum number of MAC Filter: 4,000 • WPA-Personal/Enterprise, WPA2-Personal/Enterprise |
| Transmission Power | • CE: <23dBm (5 GHz, band 1/2, EIRP); <30dBm (5 GHz band3, EIRP); • FCC: |
| Management Features | |
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller. |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-based Management | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • EAP115-Bridge KIT • Passive PoE Adapter • Power Cord • Installation Guide • Mounting Kit |
| Environment | • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing |

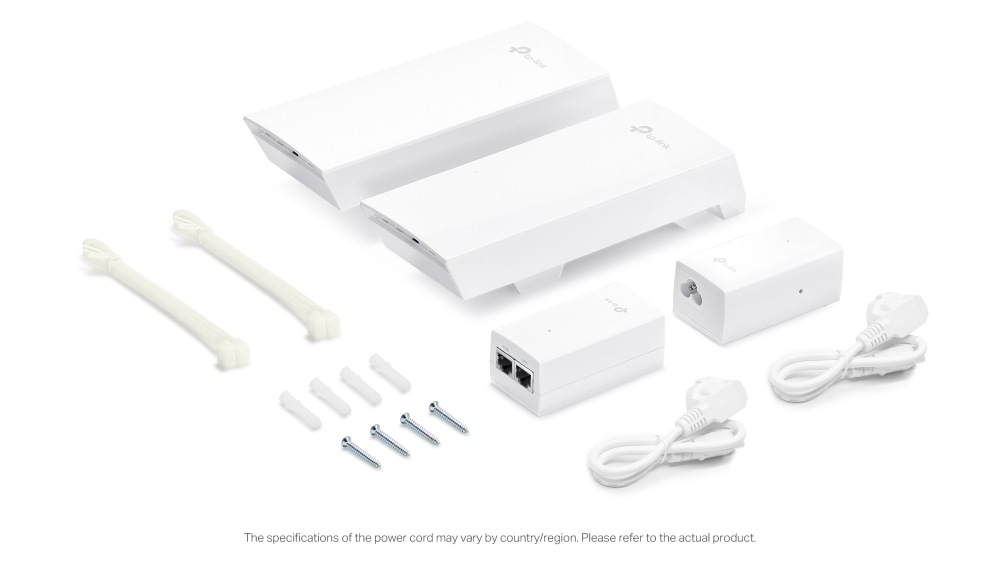

Whats in the box

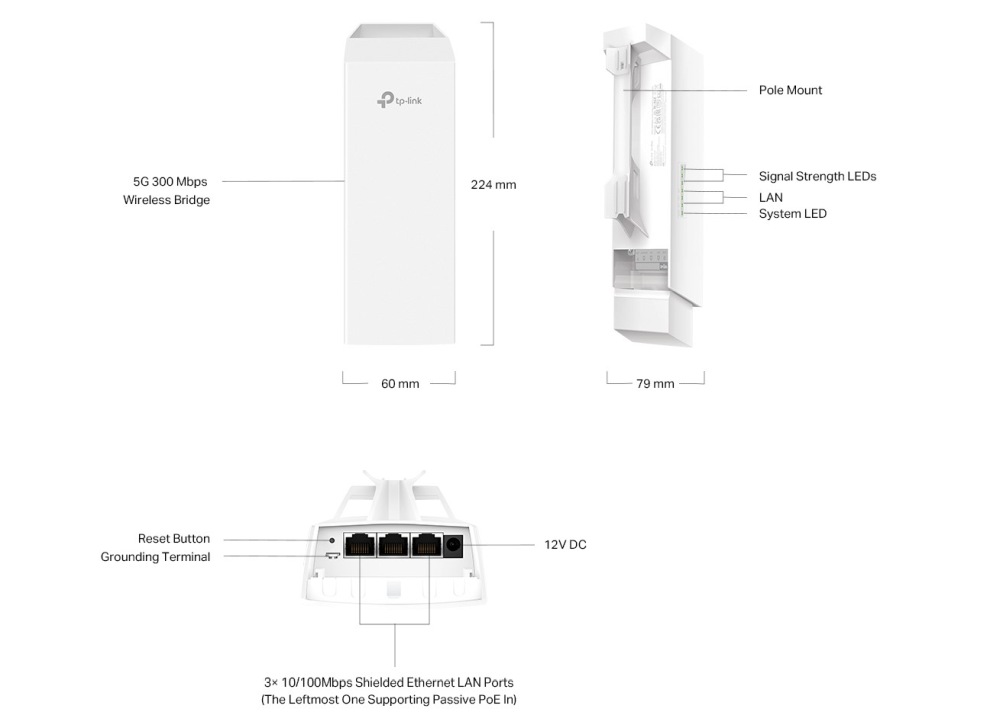

Build Features
