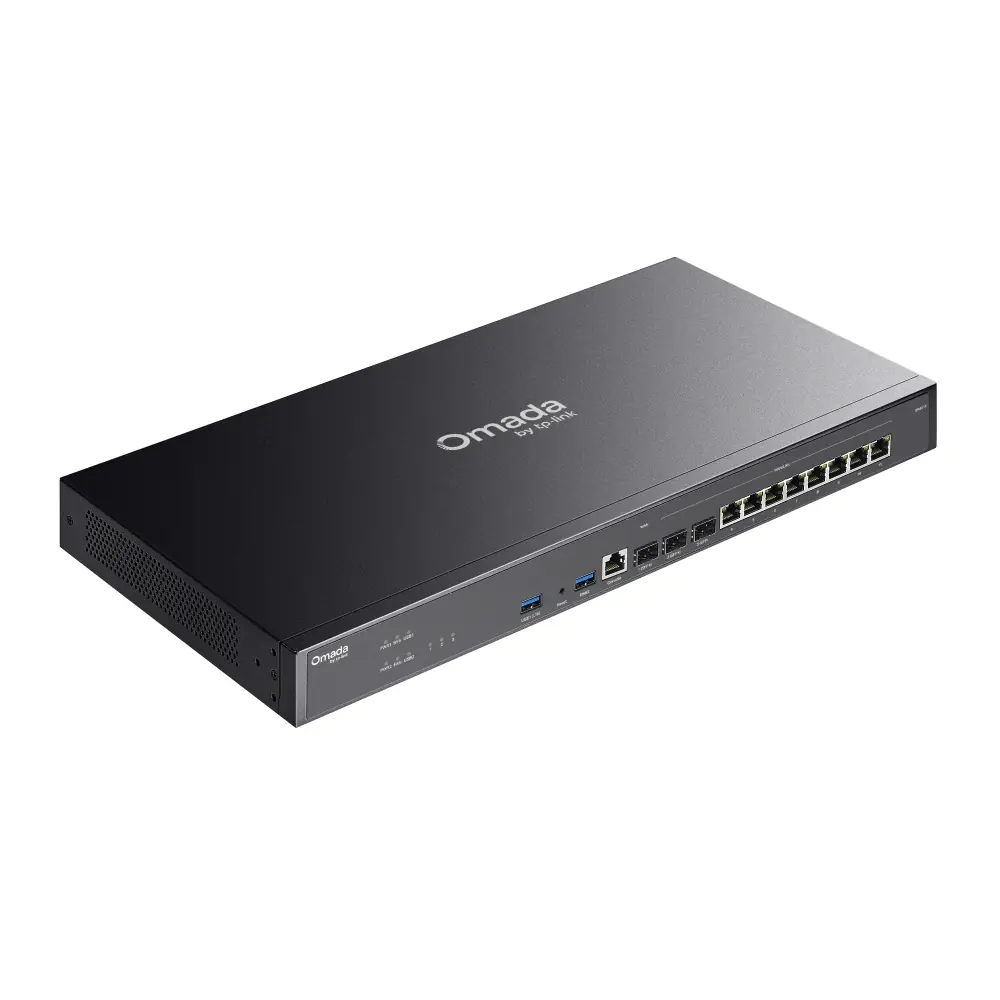

Omada (ER8411) VPN Gateway with 10G Ports
RM2,499
- 2× 10G SFP+ Slots (1× WAN, 1× WAN/LAN) & 9× Gigabit Ports (1× SFP WAN/LAN, 8× RJ45 WAN/LAN)
- 2× USB 3.0 Ports (One Supports LTE Backup with LTE Dongle), 1× RJ45 Console Port
- Load Balancing on up to 10 WAN Ports
- 1 + 1 Redundant Power Supply
- IPSec/PPTP/L2TP/OpenVPN/GRE△/ WireGuard/SSL VPN
- DPI, IPS/IDS, DoS/DDoS Protection, IP/MAC/URL/Content Filtering
- SD-WAN for Multi-Site Connectivity‡
- Centralized Cloud Management via Omada App or Web†
Available on backorder
64
People watching this product now!
Description
Reviews (0)
Only logged in customers who have purchased this product may leave a review.
Specifications
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | LLDP |
| Interface | • 2× 10GE SFP+ Ports (1× WAN, 1× WAN/LAN) • 1× 1GE SFP WAN/LAN Ports • 8× 1GE RJ45 WAN/LAN Ports • 1× RJ45 Console Port • 2× USB 3.0 Ports (One supports LTE backup with LTE dongle) |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5e, 6 cable (Max 100 m) |
| Fan Quantity | 2 |
| Button | Reset Button |
| Power Supply | Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz) |
| Flash | 4MB SPI NOR + 256 MB NAND |
| DRAM | 4 GB DDR4 |
| LED | PWR, SYS, WAN, LAN, USB, FAN |
| Dimensions ( W x D x H ) | 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm) |
| Protection | 4 kV surge protection |
| Enclosure | Steel |
| Mounting | Rack Mountable |
| Max. Power Consumption | • 26.36 W (with USB 3.0 connected) • 19.12 W (without USB 3.0 connected) |
| PERFORMANCE | |
|---|---|
| IPS Throughput | • TCP: 9388 Mbps; • UDP: 7538 Mbps |
| DPI Throughput | • TCP: 9067 Mbps • UDP: 5873 Mbps |
| GRE | • Unencrypted: 8437 Mbps • Encrypted: 2775 Mbps |
| WireGuard VPN | 1411 Mbps |
| Concurrent Session | 2,300,000 |
| New Sessions /Second | 20,000 |
| NAT (Static IP) | • Upload: 9445.82 Mbps • Download: 9449.26 Mbps |
| NAT(DHCP) | • Upload: 9426.83 Mbps • Download: 9426.20 Mbps |
| NAT(PPPoE) | • Upload: 9413.96 Mbps • Download: 9102.01 Mbps |
| NAT (L2TP) | • Upload: 9064.66 Mbps • Download: 8587.57 Mbps |
| NAT (PPTP) | • Upload: 8712.11 Mbps • Download: 8505.61 Mbps |
| 64 Byte Packet Forwarding Rate | • Upload: 2,109,375 pps • Download: 2,011,719 pps |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 3099.4 Mbps • ESP-SHA256-AES256: 2928.4 Mbps • ESP-SHA384-AES256: 2935.7 Mbps • ESP-SHA512-AES256: 2878 Mbps |
| OpenVPN | 1043 Mbps |
| L2TP VPN Throughput | • Unencrypted: 10497 Mbp • Encrypted: 3178.5 Mbps |
| SSL VPN Throughput | 1006 Mbps |
| 1,518 Byte Packet forwarding rate | • Upload: 820,982 pps • Download: 820,982 pps |
| BASIC FUNCTIONS | |
|---|---|
| LAN DNS | √ |
| WAN Connection Type | • Static/Dynamic IP • PPPoE • PPTP • L2TP • 6to4 Tunnel • Pass-Through • Mobile Broadband: 4G/3G modem for backup via USB port |
| MAC Clone | Modify WAN/LAN MAC Address△ |
| DHCP | • DHCP Server/Client • DHCP Address Reservation • Multi-net DHCP • Multi-IP Interfaces • WAN DHCP 60 |
| IPv6 | WAN Connection |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy |
| Advanced Features | |
|---|---|
| Advanced Routing | • Static Routing • Policy Routing • RIP△ • OSPF△ |
| Bandwidth Control | • IP/Port-based Bandwidth Control • Guarantee & Limited Bandwidth |
| Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing△, Failover) • Online Detection |
| NAT | • One-to-One NAT • Multi-Net NAT • Port Forwarding • Port Triggering§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP • Disable NAT |
| Session Limit | IP-based Session Limit |
| VPN | |
|---|---|
| GRE | √ (Only in Standalone mode) |
| SD-WAN | √ (Only in Controller mode) |
| SSL VPN | • SSL VPN Server • 500 SSL VPN Tunnels |
| IPsec VPN | • 300 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, SHA1, SHA256, SHA384, SHA512, AES128, AES192, AES256 Encryption Algorithm • IKE v1/v2 • MD5, SHA1 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server • PPTP VPN Client (32)* • 300 Tunnels (Shared with L2TP) • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server • L2TP VPN Client (32)* • 300 Tunnels (Shared with PPTP) • L2TP over IPSec |
| OpenVPN | • OpenVPN Server • OpenVPN Client (10)* • 110 OpenVPN Tunnels |
| WireGuard VPN | √ |
| AUTHENTICATION | |
|---|---|
| Web Authentication | • No Authentication • Simple Password‡ • Hotspot（Local User / Voucher‡ / SMS‡ / Radius‡） • External Radius Sever • External Portal Sever‡ |
| Management Features | |
|---|---|
| Omada App | Yes. Requiring the use of an Omada Controller. |
| Centralized Management | • Omada Hardware Controller • Omada Software Controller • Omada Central (Cloud-Based) |
| Cloud Access | Yes. Requiring the use of an Omada Controller. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute) • NTP Synchronize△ • Port Mirroring • Syslog Support |
| Management Features | • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration • ZTP (Zero-Touch Provisioning)† |
| SECURITY | |
|---|---|
| DPI | • Deep Packet Inspection • Support 2421 type Applications |
| IDS/IPS | Signature-based IPS/IDS threat detection |
| Access Control | • Source/Destination IP Based ACL • Stateful ACL • IPv4/IPv6 ACL • National Based ACL • FQDN |
| DNS Proxy | DNSSEC, DoH, DoT, and DNS Override |
| Filtering | • WEB Group Filtering△ • URL Categories and URLs Filtering • Web Security△ |
| ARP Inspection | • Sending GARP Packets • ARP Scanning • IP-MAC Binding • ARP Detection |
| Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | LLDP |
| Interface | • 2× 10GE SFP+ Ports (1× WAN, 1× WAN/LAN) • 1× 1GE SFP WAN/LAN Ports • 8× 1GE RJ45 WAN/LAN Ports • 1× RJ45 Console Port • 2× USB 3.0 Ports (One supports LTE backup with LTE dongle) |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5e, 6 cable (Max 100 m) |
| Fan Quantity | 2 |
| Button | Reset Button |
| Power Supply | Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz) |
| Flash | 4MB SPI NOR + 256 MB NAND |
| DRAM | 4 GB DDR4 |
| LED | PWR, SYS, WAN, LAN, USB, FAN |
| Dimensions ( W x D x H ) | 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm) |
| Protection | 4 kV surge protection |
| Enclosure | Steel |
| Mounting | Rack Mountable |
| Max. Power Consumption | • 26.36 W (with USB 3.0 connected) • 19.12 W (without USB 3.0 connected) |
| PERFORMANCE | |
|---|---|
| IPS Throughput | • TCP: 9388 Mbps; • UDP: 7538 Mbps |
| DPI Throughput | • TCP: 9067 Mbps • UDP: 5873 Mbps |
| GRE | • Unencrypted: 8437 Mbps • Encrypted: 2775 Mbps |
| WireGuard VPN | 1411 Mbps |
| Concurrent Session | 2,300,000 |
| New Sessions /Second | 20,000 |
| NAT (Static IP) | • Upload: 9445.82 Mbps • Download: 9449.26 Mbps |
| NAT(DHCP) | • Upload: 9426.83 Mbps • Download: 9426.20 Mbps |
| NAT(PPPoE) | • Upload: 9413.96 Mbps • Download: 9102.01 Mbps |
| NAT (L2TP) | • Upload: 9064.66 Mbps • Download: 8587.57 Mbps |
| NAT (PPTP) | • Upload: 8712.11 Mbps • Download: 8505.61 Mbps |
| 64 Byte Packet Forwarding Rate | • Upload: 2,109,375 pps • Download: 2,011,719 pps |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 3099.4 Mbps • ESP-SHA256-AES256: 2928.4 Mbps • ESP-SHA384-AES256: 2935.7 Mbps • ESP-SHA512-AES256: 2878 Mbps |
| OpenVPN | 1043 Mbps |
| L2TP VPN Throughput | • Unencrypted: 10497 Mbp • Encrypted: 3178.5 Mbps |
| SSL VPN Throughput | 1006 Mbps |
| 1,518 Byte Packet forwarding rate | • Upload: 820,982 pps • Download: 820,982 pps |
| BASIC FUNCTIONS | |
|---|---|
| LAN DNS | √ |
| WAN Connection Type | • Static/Dynamic IP • PPPoE • PPTP • L2TP • 6to4 Tunnel • Pass-Through • Mobile Broadband: 4G/3G modem for backup via USB port |
| MAC Clone | Modify WAN/LAN MAC Address△ |
| DHCP | • DHCP Server/Client • DHCP Address Reservation • Multi-net DHCP • Multi-IP Interfaces • WAN DHCP 60 |
| IPv6 | WAN Connection |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy |
| Advanced Features | |
|---|---|
| Advanced Routing | • Static Routing • Policy Routing • RIP△ • OSPF△ |
| Bandwidth Control | • IP/Port-based Bandwidth Control • Guarantee & Limited Bandwidth |
| Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing△, Failover) • Online Detection |
| NAT | • One-to-One NAT • Multi-Net NAT • Port Forwarding • Port Triggering§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP • Disable NAT |
| Session Limit | IP-based Session Limit |
| VPN | |
|---|---|
| GRE | √ (Only in Standalone mode) |
| SD-WAN | √ (Only in Controller mode) |
| SSL VPN | • SSL VPN Server • 500 SSL VPN Tunnels |
| IPsec VPN | • 300 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, SHA1, SHA256, SHA384, SHA512, AES128, AES192, AES256 Encryption Algorithm • IKE v1/v2 • MD5, SHA1 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server • PPTP VPN Client (32)* • 300 Tunnels (Shared with L2TP) • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server • L2TP VPN Client (32)* • 300 Tunnels (Shared with PPTP) • L2TP over IPSec |
| OpenVPN | • OpenVPN Server • OpenVPN Client (10)* • 110 OpenVPN Tunnels |
| WireGuard VPN | √ |
| AUTHENTICATION | |
|---|---|
| Web Authentication | • No Authentication • Simple Password‡ • Hotspot（Local User / Voucher‡ / SMS‡ / Radius‡） • External Radius Sever • External Portal Sever‡ |
| Management Features | |
|---|---|
| Omada App | Yes. Requiring the use of an Omada Controller. |
| Centralized Management | • Omada Hardware Controller • Omada Software Controller • Omada Central (Cloud-Based) |
| Cloud Access | Yes. Requiring the use of an Omada Controller. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute) • NTP Synchronize△ • Port Mirroring • Syslog Support |
| Management Features | • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration • ZTP (Zero-Touch Provisioning)† |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • Omada VPN Gateway with 10G Ports ER8411 • Power Cord • Rackmount Kit • RJ45 Console Cord • Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
†These features require the use of an Omada controller.
△These features are supported only in Standalone Mode
‡These features are supported only in Controller Mode
*ER8411 can work as a VPN client and can connect with up to 32 PPTP/L2TP VPN servers and 10 OpenVPN servers.

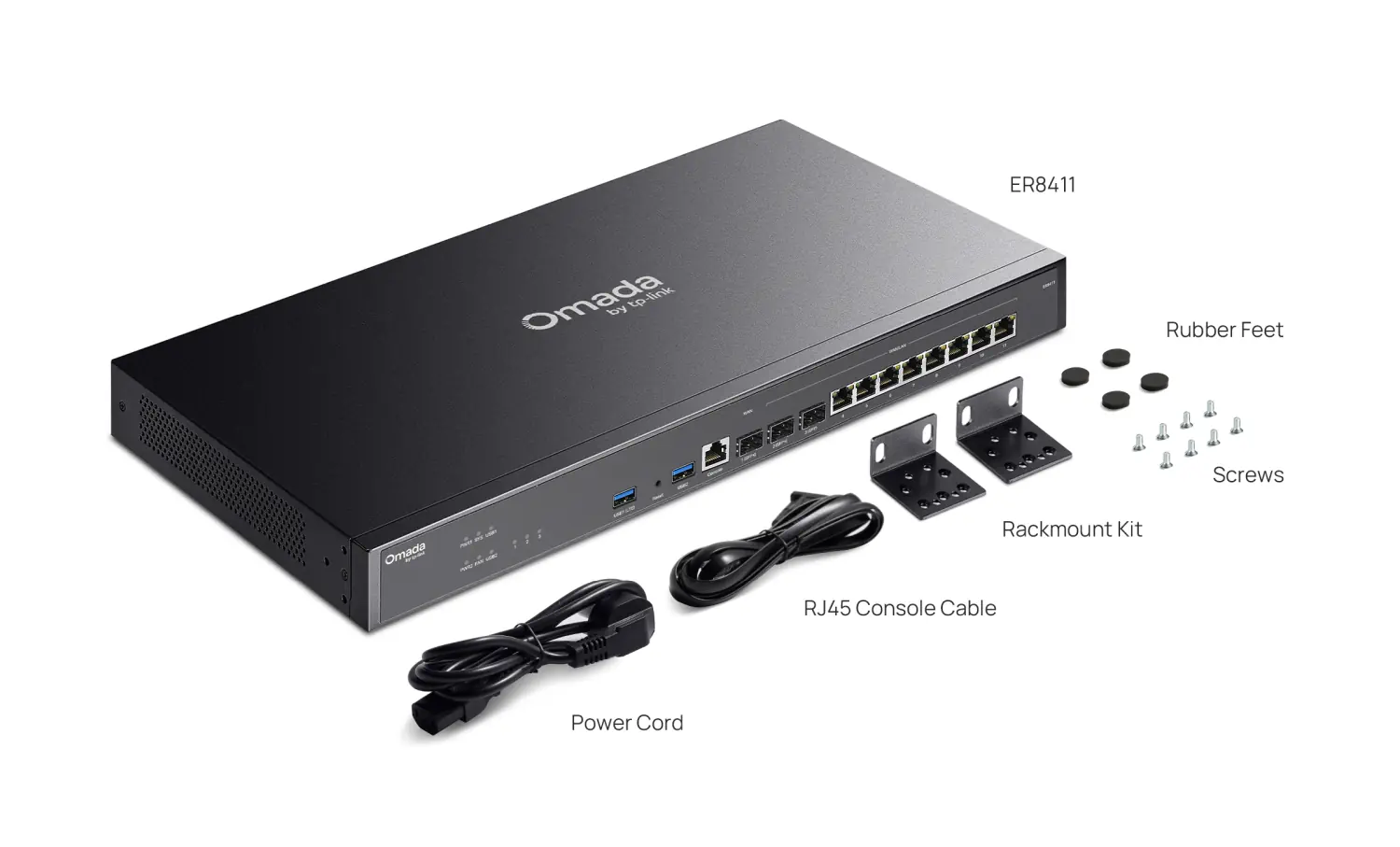

Whats in the box

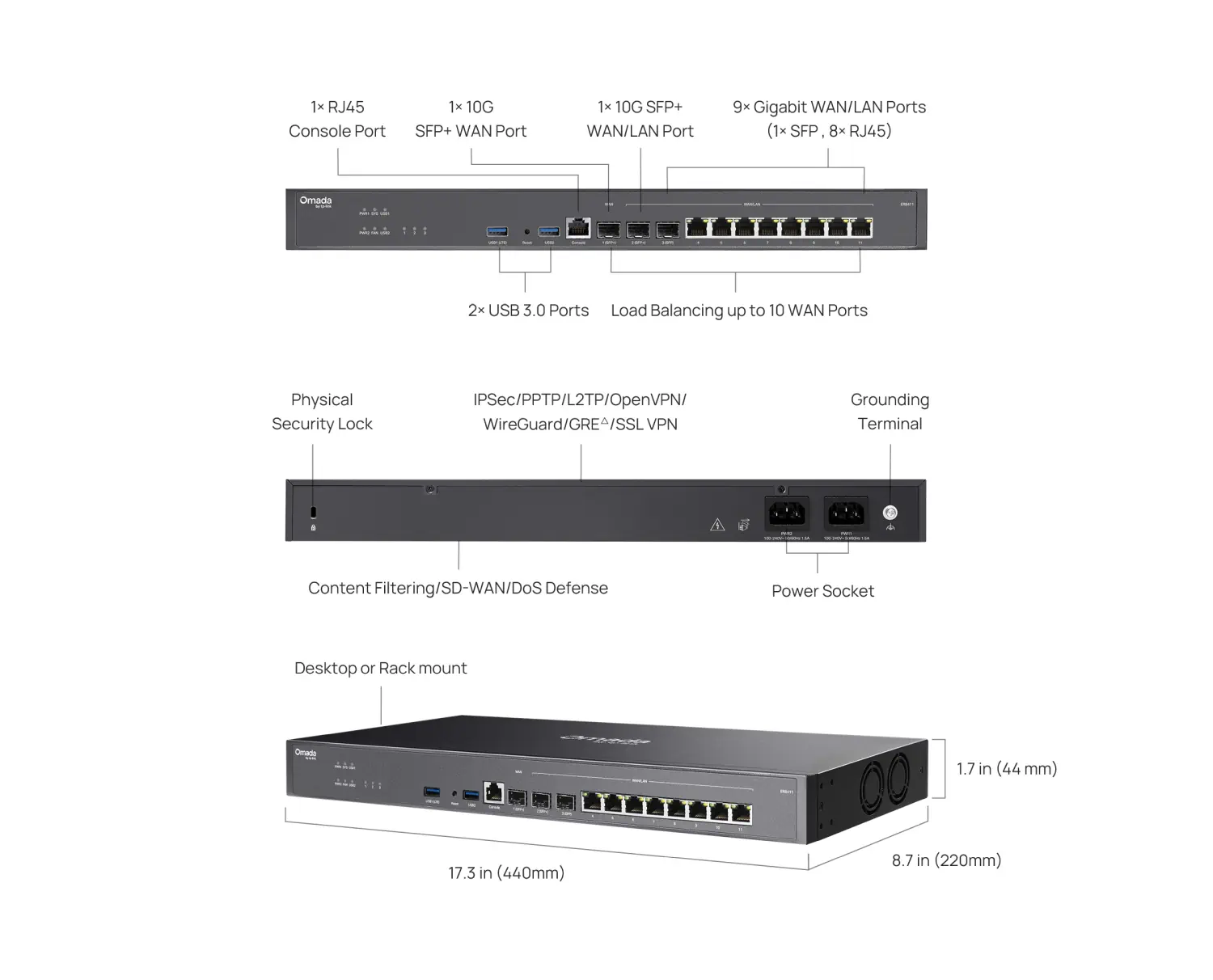

Build features
