EAP772 BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
RM1,499
- BE11000 Tri-Band Wi-Fi 7 (5765 Mbps on 6 GHz + 4324 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).
- A clear 6 GHz band brings cleaner and wider band resources.
- 1× 2.5G Port unlocks the full potential of Wi-Fi 7.
- 320 MHz bandwidth enables many more simultaneous transmissions.
- Multi-Link Operation and Multi-RUs ensure the high performance of your network.
- Advanced Functions: Centralized management, mesh, and AI roaming.
Only logged in customers who have purchased this product may leave a review.
The biggest distinction for the US version of this model is its BE11000 tri-band rating (yielding up to 5760 Mbps on the 6 GHz band), compared to the EU version which is limited to BE9300. The V2 hardware iteration retains the signature ultra-thin design profile and adds integrated Bluetooth 5.2 hardware for enhanced IoT/location-based positioning features.
Hardware & Performance
| Feature | Specification |
| Product Model | Omada EAP772 (US) V2 |
| Form Factor | Ultra-Thin Ceiling Mount |
| Wi-Fi Generation | Wi-Fi 7 (IEEE 802.11a/b/g/n/ac/ax/be) |
| Frequency Bands | Tri-Band (2.4 GHz, 5 GHz, & 6 GHz) |
| Max Wireless Speed | Total: Up to 11 Gbps (BE11000) • 6 GHz: 5760 Mbps • 5 GHz: 4320 Mbps • 2.4 GHz: 574 Mbps |
| Spatial Streams | 6-Stream Design (2×2 + 2×2 + 2×2) |
| Ethernet Interface | 1× 2.5 Gbps Multi-Gigabit RJ45 Port |
| Power Supply | • 802.3at PoE+ • 12V DC (Power adapter included) |
| Max Power Consumption | • PoE: 25.44 W • DC: 22.57 W |
| Bluetooth Hardware | 1× 4.0 dBi Internal Antenna, Bluetooth 5.2 |

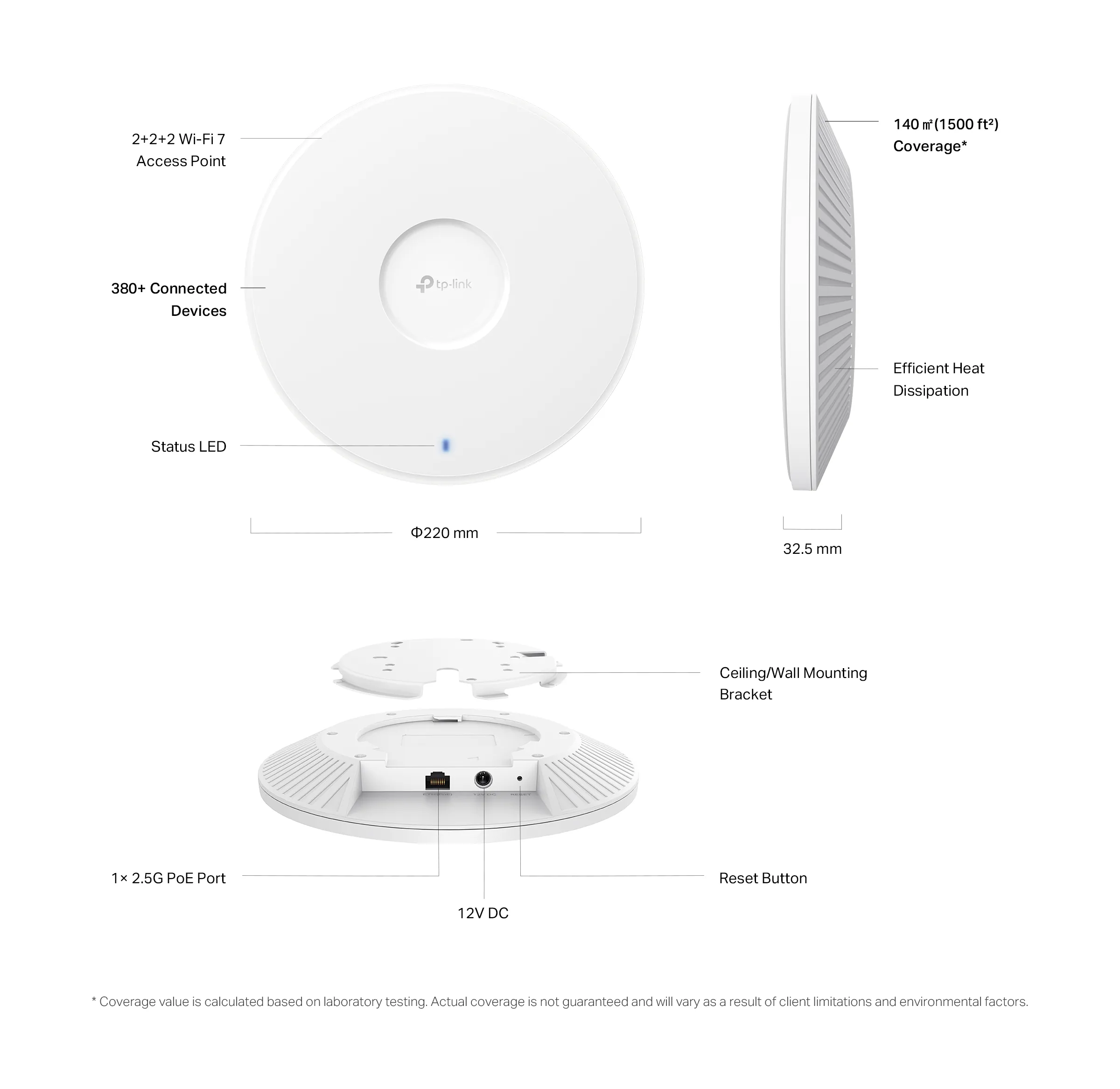

| Dimensions (W × D × H) | 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) |
| Internal Antennas | • 2.4 GHz: 2× 4.0 dBi • 5 GHz: 2× 5.0 dBi • 6 GHz: 2× 5.0 dBi |
Advanced Wireless Features
| Feature | Specification |
| Core Wi-Fi 7 Tech | Multi-Link Operation (MLO), 4K-QAM, Multi-RUs, 320 MHz Bandwidth (on 6 GHz band) |
| Radio Features | MU-MIMO, OFDMA, Beamforming, Band Steering, Airtime Fairness |
| Wireless Security | WPA-Personal/Enterprise, WPA2, WPA3, Rogue AP Detection |
| Concurrent Clients | 380+ |
| Multi-SSID | Supports up to 24 SSIDs (8 per band) |
Management & Deployment
| Feature | Specification |
| Centralized Management | Integrates with Omada SDN Hardware Controller, Software Controller, or Cloud-Based Controller |
| Mesh Networking | Omada Mesh Technology |
| Captive Portal | SMS, Facebook Wi-Fi, Voucher, Local User, Radius |

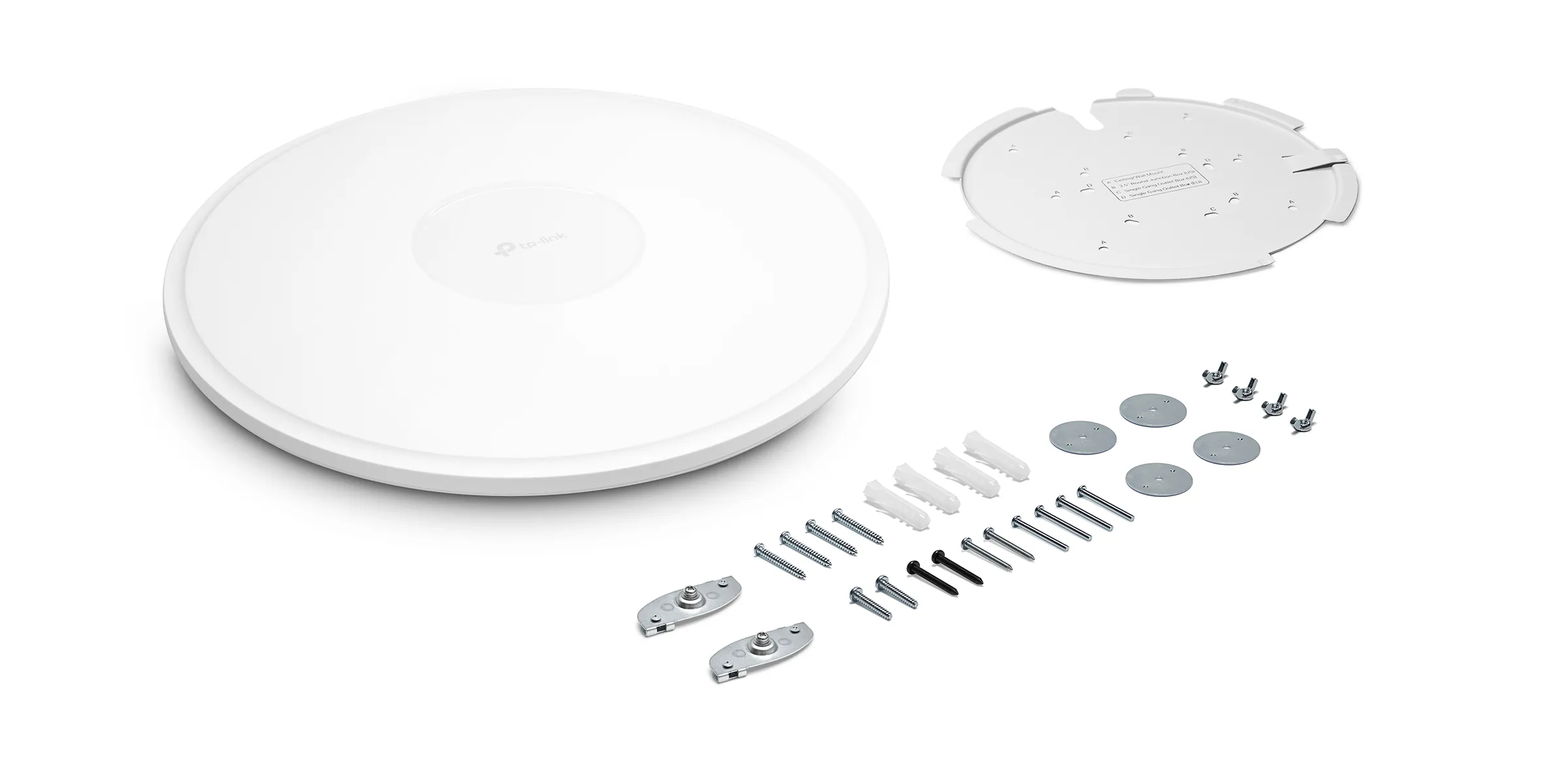

| Deployment Options | Ceiling mount or wall mount (mounting kit included) |
