EAP650-Wall AX3000 Wall Plate WiFi 6 Access Point
RM449
- Up to 2976 Mbps WiFi 6 Speeds: 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz.
- Full in-room WiFi coverage for a seamless network.
- Connect wired devices with one downlink gigabit port.
- Integrates with the Omada SDN platform for centralized management.
- Features an easy-to-install design and supports PoE for easy installation.
Only logged in customers who have purchased this product may leave a review.
Hardware Features
| Feature | Specification |

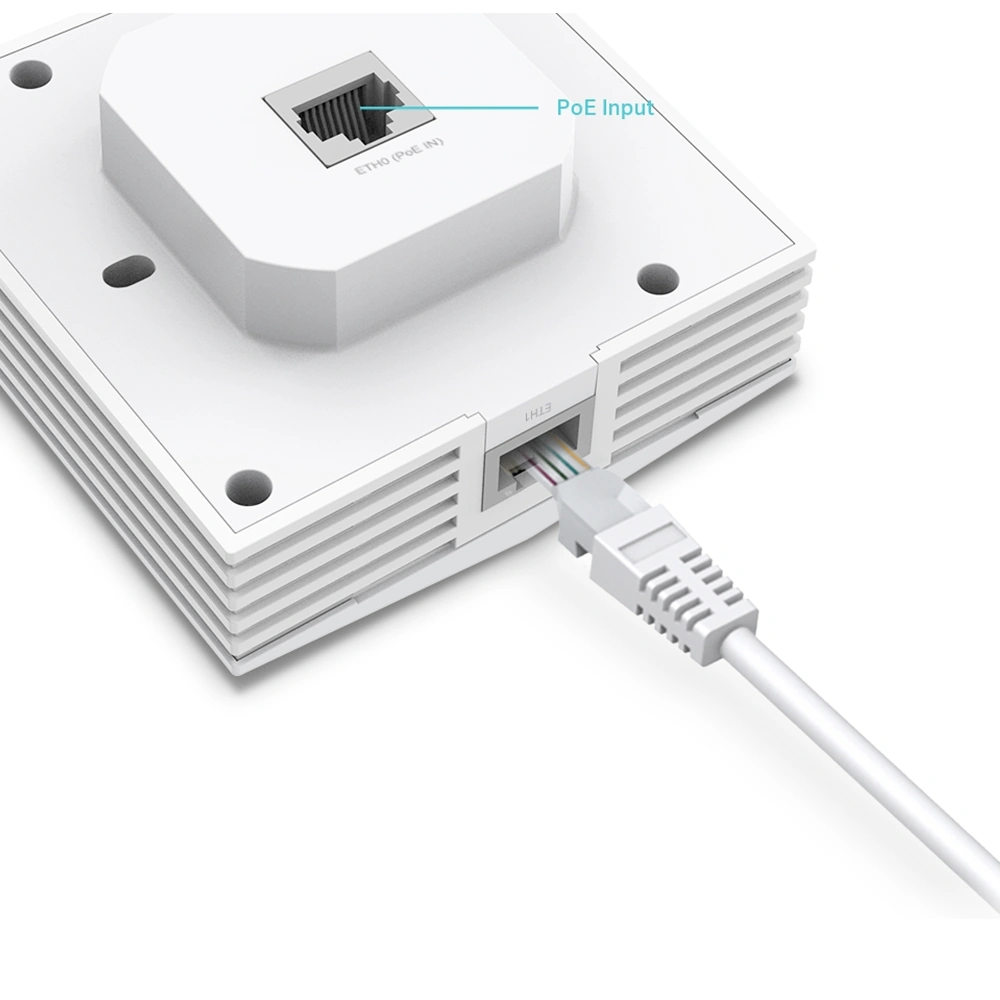

| Interface | • Uplink: 1× 10/100/1000 Mbps Ethernet Port • Downlink: 1× 10/100/1000 Mbps Ethernet Port |
| Physical Security Lock | No |
| Buttons | Reset, LED |
| Power Supply | 802.3af PoE |
| Max. Power Consumption | EU: 10.5 W |

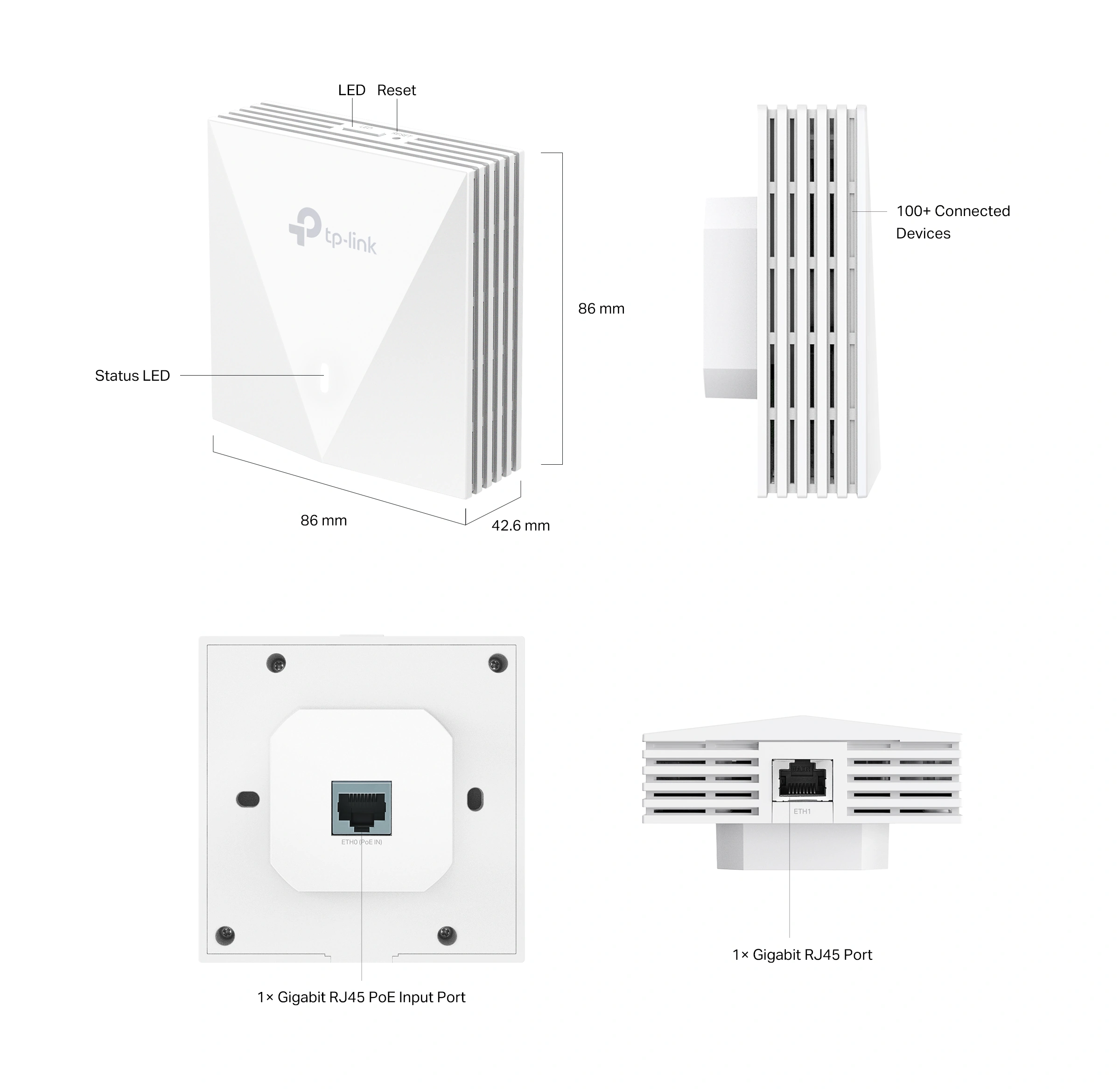

| Dimensions (W x D x H) | 86 × 86 × 42.2 mm (3.4 × 3.4 × 1.7 in) |
| Antennas | 2 Dual-Band Antennas • 2.4 GHz: 2× 3 dBi • 5 GHz: 3× 3 dBi |
| Mounting | Wall Plate Mounting (Kits included) |
Wireless Features
| Feature | Specification |
| Coverage | 40㎡ (450ft²) |
| Concurrent Clients | 100+ |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 2402 Mbps • 2.4 GHz: Up to 574 Mbps |
| Wireless Functions | • 16 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Omada Mesh • Seamless Roaming (802.11k/v/r) • Beamforming • Rate Limit • Load Balance • Airtime Fairness • Band Steering • Reboot/Wireless Schedule • RADIUS Accounting • MAC Authentication • Wireless Statistics • Static IP/Dynamic IP |
| Wireless Security | • Captive Portal Authentication§ • Access Control • Wireless MAC Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • 802.1X Support • WPA/WPA2/WPA3-Personal & Enterprise |
| Transmission Power | • CE: <20 dBm (2.4GHz, EIRP), <23 dBm (5GHz, EIRP) |
Management Features
| Feature | Specification |
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller (OC300 / OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes (Requires Omada Controller) |
| Monitoring & Alerts | Email Alerts, Local/Remote Syslog, Wireless Statistics |
| Access Control | Management MAC Access Control, SSH, Web-based (HTTP/HTTPS) |
| Network Management | SNMP v1, v2c, v3, L3 Management, Multi-site Management, Management VLAN |
| Zero-Touch Provisioning | Yes (Requires Omada Cloud-Based Controller) |
| Hardware Controls | LED ON/OFF Control |
System & Environmental
| Feature | Specification |
| Certification | CE, RoHS |

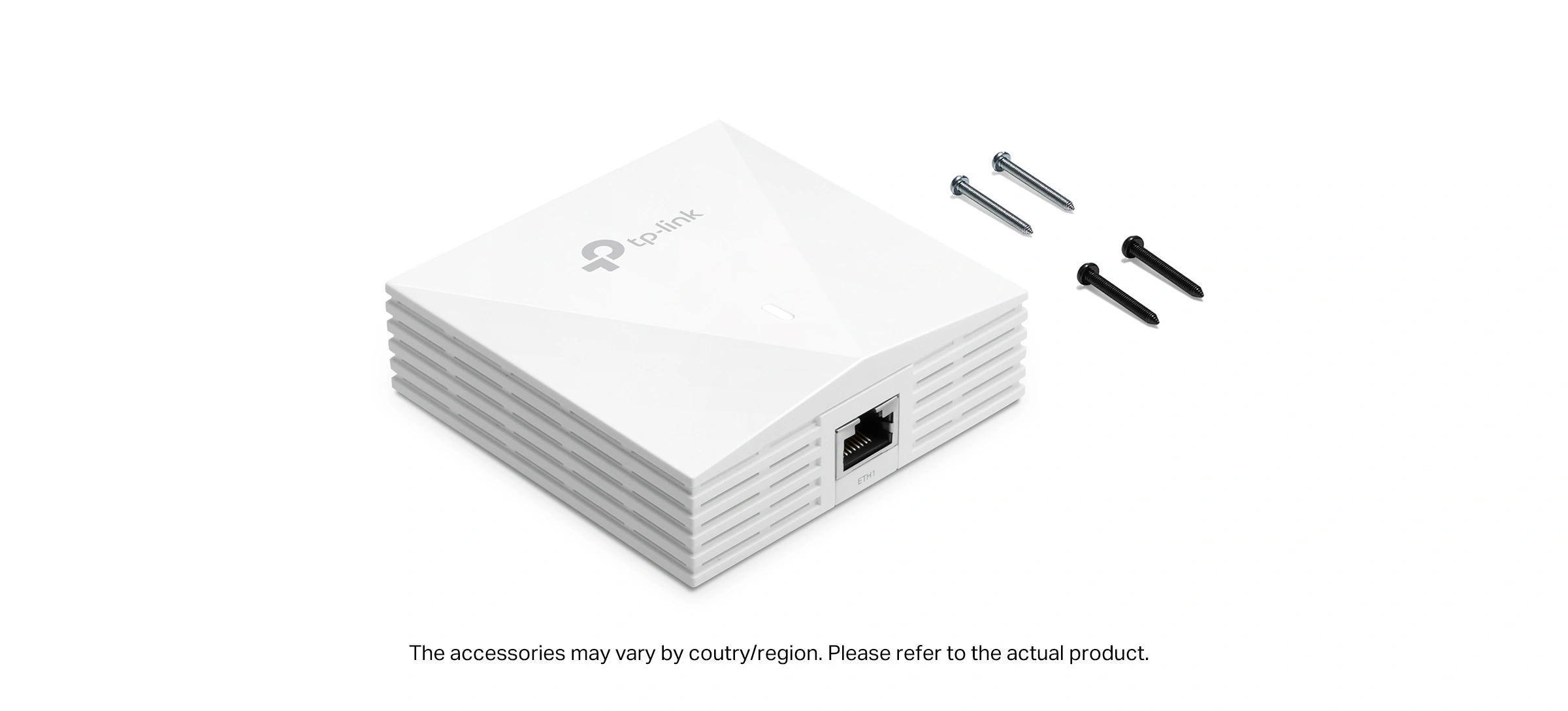

| Package Content | • AX3000 Wall Plate WiFi 6 Access Point EAP650-Wall • Installation Guide • Mounting Kits |
| System Requirements | Microsoft Windows XP, Vista, 7, 8, 10, 11, Linux |
| Operating Environment | • Temperature: 0–40 ℃ (32–104 ℉) • Humidity: 10–90% RH non-condensing |
| Storage Environment | • Temperature: -40–70 ℃ (-40–158 ℉) • Humidity: 5–90% RH non-condensing |
