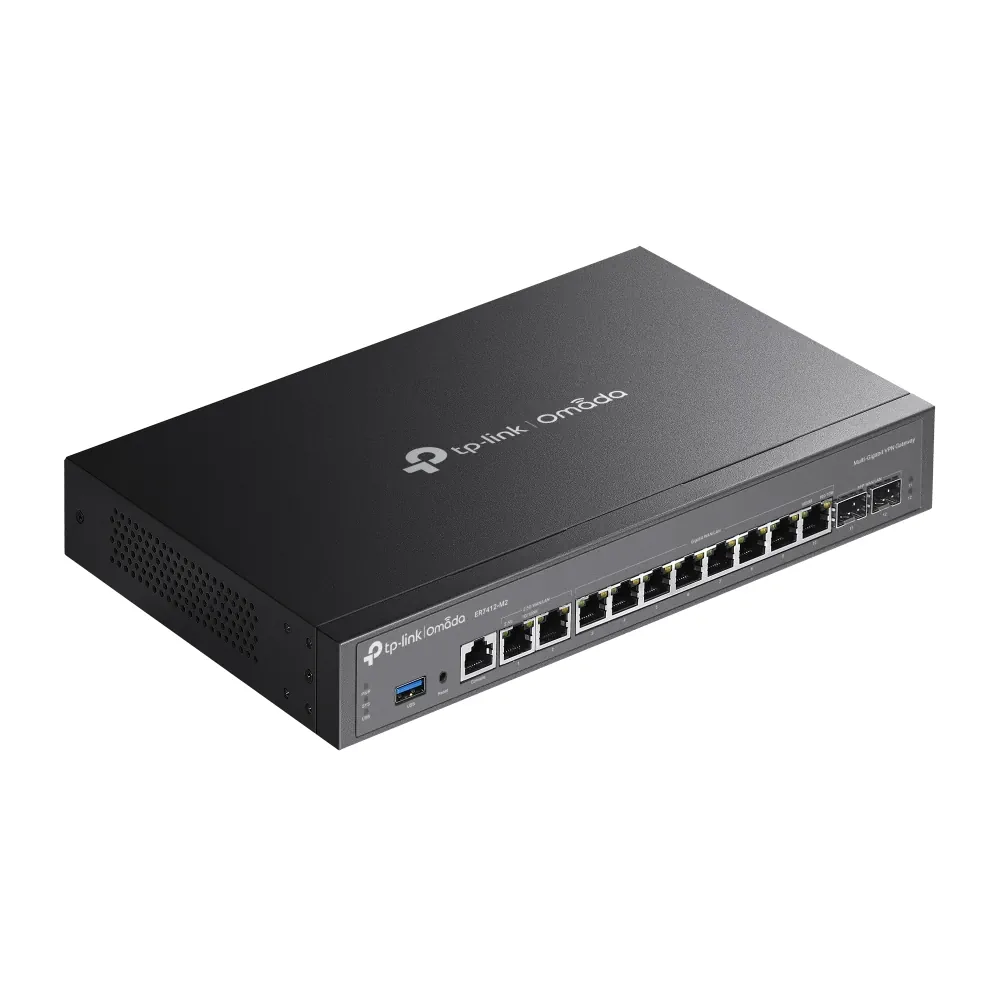

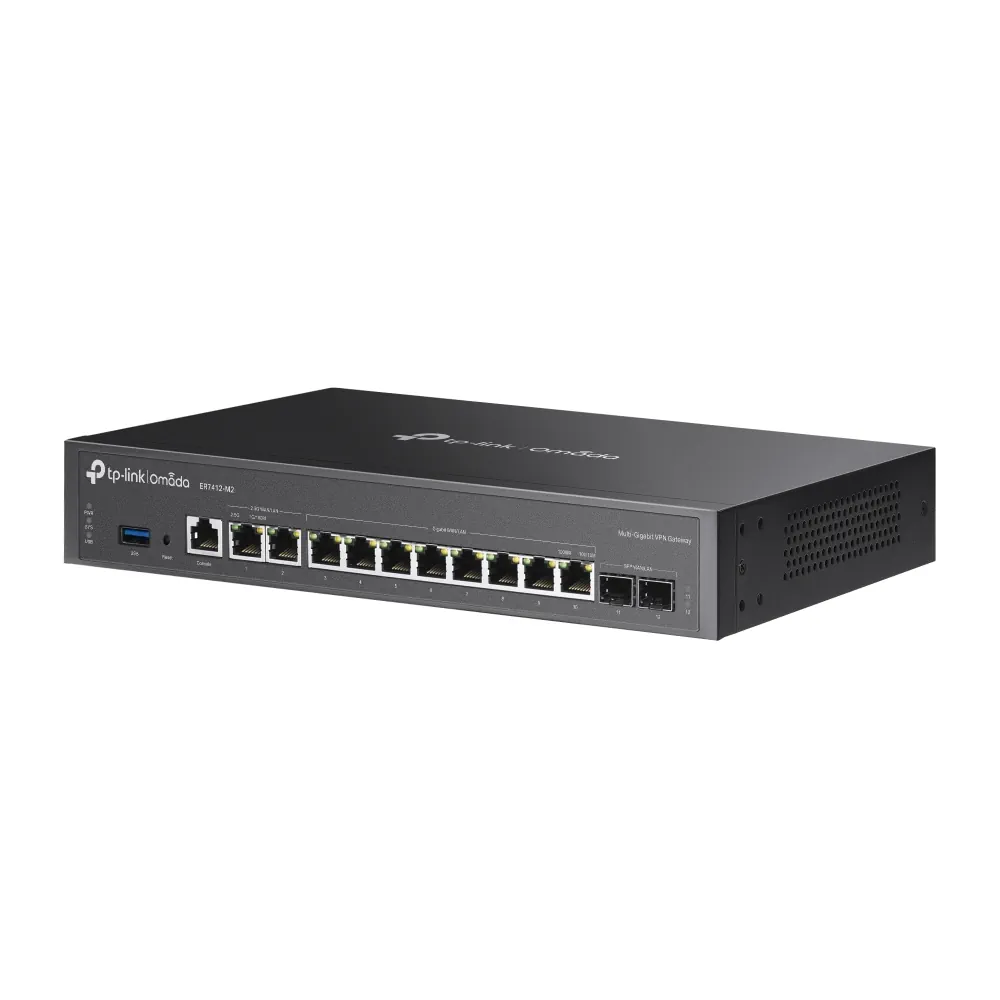

Omada (ER7412-M2) Multi-Gigabit VPN Gateway
RM1,549
- Quad-core @2.0GHz CPU
- 2× 2.5G RJ45 WAN/LAN ports
- 10× Gigabit WAN/LAN Ports (2× SFP, 8× RJ45)
- 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)
- Load Balancing on up to 11 WAN ports△ increases the utilization rate of multi-line broadband
- High-security SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
- Centralized cloud management via the web or the Omada app*
- DoS/DDoS protection, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security
22
People watching this product now!
Description
Reviews (0)
Only logged in customers who have purchased this product may leave a review.
Specifications
| SECURITY | |
| DPI | Deep Packet Inspection Support 2421 type Applications |
| IDS/IPS | Intrusion Detection/Prevention |
| Access Control | • Source/Destination IP-Based ACL • Stateful ACL • IPv4/IPv6 ACL • Location Based ACL |
| DNS Proxy | DNSSEC, DoH, DoT, DNS Override |
| Filtering | • WEB Group Filtering§ • URL Filtering • Web Security§ |
| ARP Inspection | • Sending GARP Packets§ • ARP Scanning§ • IP-MAC Binding§ |
| Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
| HARDWARE FEATURES | |
| CPU | Quad-core ARMv8 |
| Standards and Protocols | • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP |

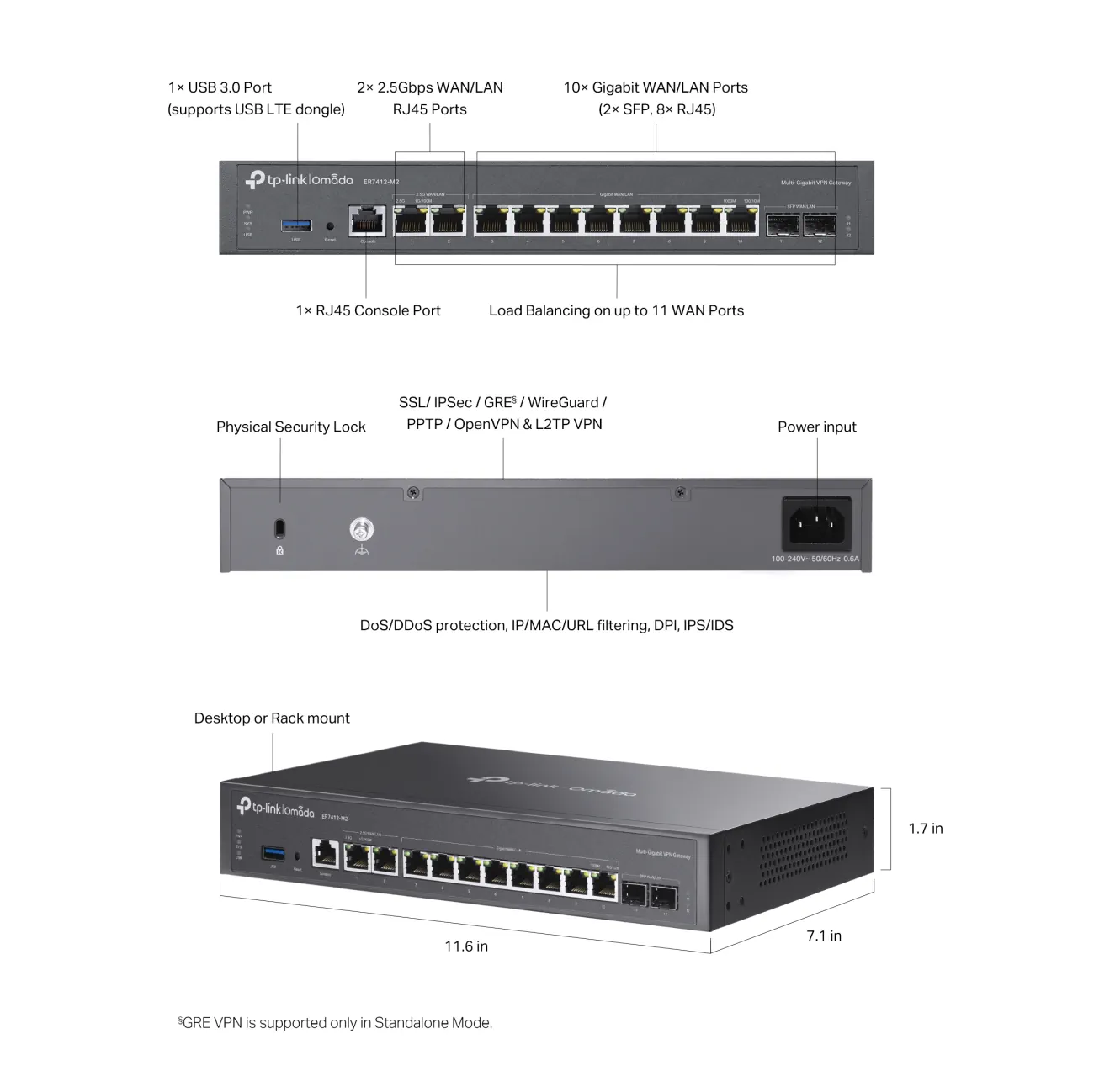

| Interface | • 1× 2.5G RJ45 WAN/LAN Port • 1× 2.5G RJ45 WAN/LAN Port • 2× Gigabit SFP WAN/LAN Ports • 8× Gigabit RJ45 WAN/LAN Ports• 1× RJ45 Console Port • 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle) |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) • 2500BASE-T: UTP category 5e, 6 cable (Max 100 m) |
| Button | Reset Button |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Flash | 128MB NAND |
| DRAM | 1 GB DDR4 |
| Weight | 1.168 kg |
| Dimensions ( W x D x H ) | 11.6×7.1×1.7 in (294×180×44 mm) |
| Protection | 4 kV surge protection |
| Enclosure | Steel |
| Mounting | • Desktop • Rackmountable |
| Max. Power Consumption | 18.5W (With USB 3.0 connected) |
| PERFORMANCE | |
| IDS Throughput | 573 Mbps |
| IPS Throughput | 573 Mbps |
| DPI Throughput | 2.2Gbps |
| GRE | • Unencrypted: 1153.0 Mbps • Encrypted: 559.2 Mbps |
| WireGuard VPN | 771.6 Mbps |
| WireGuard VPN Throughput | 771.6 Mbps |
| Concurrent Session | 1,000,000 |
| New Sessions /Second | 7,000 |
| NAT (Static IP) | 2345.71 Mbps / 2351.22 Mbps |
| NAT(DHCP) | 2353.41 Mbps / 2353.40 Mbps |
| NAT(PPPoE) | 2336.52 Mbps / 2336.08 Mbps |
| NAT (L2TP) | 1937.53 Mbps / 1761.82 Mbps |
| NAT (PPTP) | 1757.54 Mbps / 2011.33 Mbps |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 1125.60 Mbps • ESP-SHA256-AES256: 1133.1 Mbps • ESP-SHA384-AES256: 1126.6 Mbps • ESP-SHA512-AES256: 1132.8 Mbps |
| OpenVPN | UDP: 266.2 Mbps |
| L2TP VPN Throughput | • Unencrypted: 2724.5 Mbps • Encrypted: 1018.4Mbps |
| PPTP VPN Throughput | • Unencrypted: 3035 Mbps • Encrypted: 534.6 Mbps |
| SSL VPN Throughput | 263.1 Mbps |
| 66 Byte Packet Forwarding Rate | Upload: 3,471,591pps Download: 3,475,379pps |
| 1,518 Byte Packet forwarding rate | Upload: 202,652pps Download: 202,652pps |
| BASIC FUNCTIONS | |
| LAN DNS | √ |
| WAN Connection Type | • Static IP/Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP • Mobile Broadband: 4G/3G modem for backup via USB port |
| MAC Clone | Modify WAN/LAN MAC Address† |
| DHCP | • DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP |
| Stateful ACL | √ |
| Quality of Service | √ |
| Bridge VLAN | √ |
| mDNS Repeater | √ |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| ADVANCED FEATURES | |
| Advanced Routing | • Static Routing • Policy Routing • RIP (available in Standalone Mode) • OSPF (available in Standalone Mode) |
| Bandwidth Control | IP/Port-based Bandwidth Control |
| Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing§, Failover) • Online Detection |
| NAT | • One-to-One NAT§ • Multi-Net NAT • Virtual Server • Port Triggering§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP |
| Session Limit | IP-based Session Limit |
| VPN | |
| GRE | Only in Standalone Mode |
| SD-WAN | √ (Only in Controller mode) |
| SSL VPN | 80 Tunnels |
| IPsec VPN | • 150 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server • PPTP VPN Client (15)** • 150 Tunnels • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server • L2TP VPN Client (15)** • 150 Tunnels • L2TP over IPSec |
| OpenVPN | • OpenVPN Server • OpenVPN Client (11)** • 121 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode |
| WireGuard VPN | • 20 Tunnels |
| AUTHENTICATION | |
| Web Authentication | • No Authentication • Simple Password* • Hotspot (Local User/Voucher*/SMS*/Radius*) • External Radius Server • External Portal Server* • LDAP |
| MANAGEMENT FEATURES | |
| Omada App | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3* • Diagnostics (Ping & Traceroute)§ • NTP Synchronize§ • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Automatic Device Discovery* • Batch Configuration* • Batch Firmware Upgrading* • Intelligent Network Monitoring* • Abnormal Event Warnings* • Unified Configuration* • Reboot Schedule* |
| OTHERS | |
| Certification | CE, FCC |
| Package Content | • ER7412-M2 • Power Cord • Quick Installation Guide • Rackmount Kit • RJ45 Console Cord |
| System Requirements | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: 0–45 ℃ (32–113 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% non-condensing |
