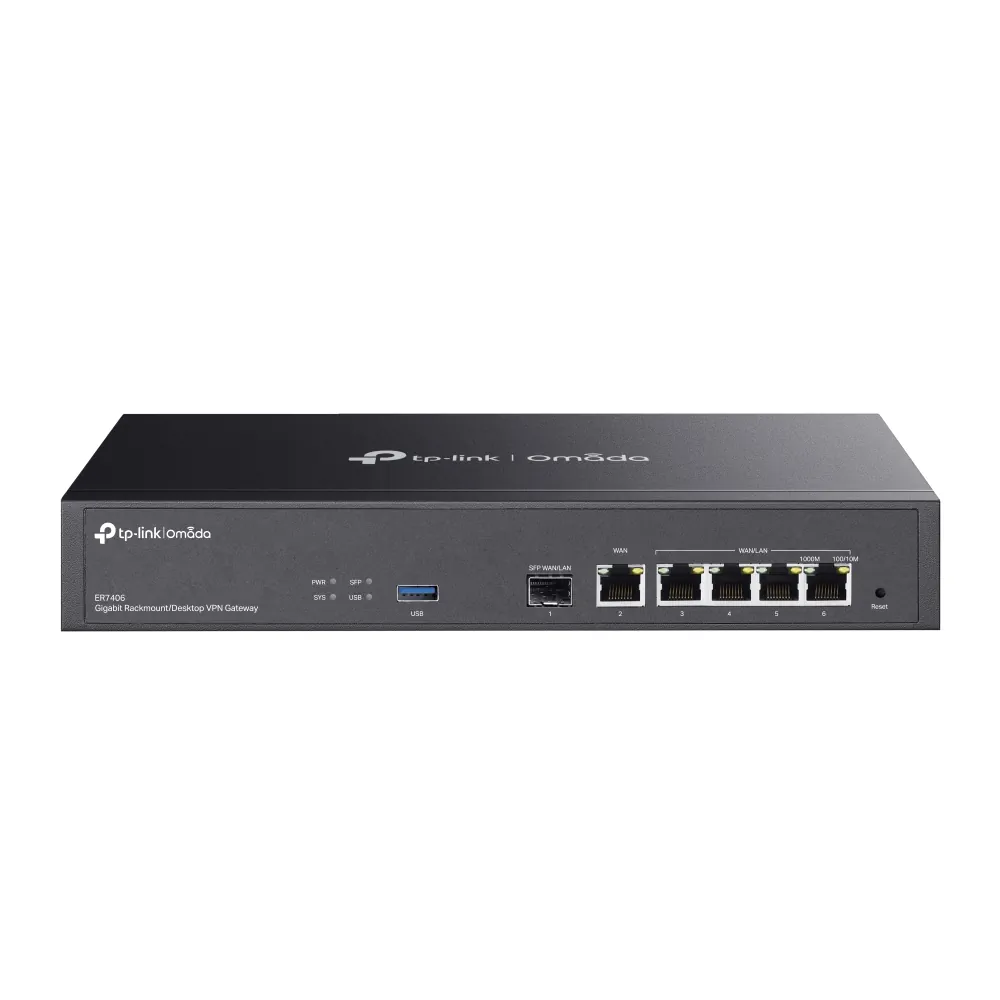

Omada (ER7406) Gigabit Rackmount/Desktop VPN Gateway
Original price was: RM1,149.RM1,130Current price is: RM1,130.
Snapmaker U1 3D Printer
RM3,999
-9%
SHOP WITH CONFIDENCE
In-Store Pickup Available
Skip the shipping wait. Place your order online and collect it directly from BUCKBOOST Cheras as soon as your order status is marked "Ready for Pickup." Please bring a copy of your invoice or order confirmation email for verification.
Same-Day Express Delivery
Need your tech gear urgently? Orders placed before 12:00 PM (Monday – Friday) are eligible for lightning-fast delivery within Klang Valley.
Reliable Courier Shipping
We partner with trusted premium couriers to ensure your IT hardware arrives safely.
Secure Payment
Shop with peace of mind. We safely accept all major payment methods:

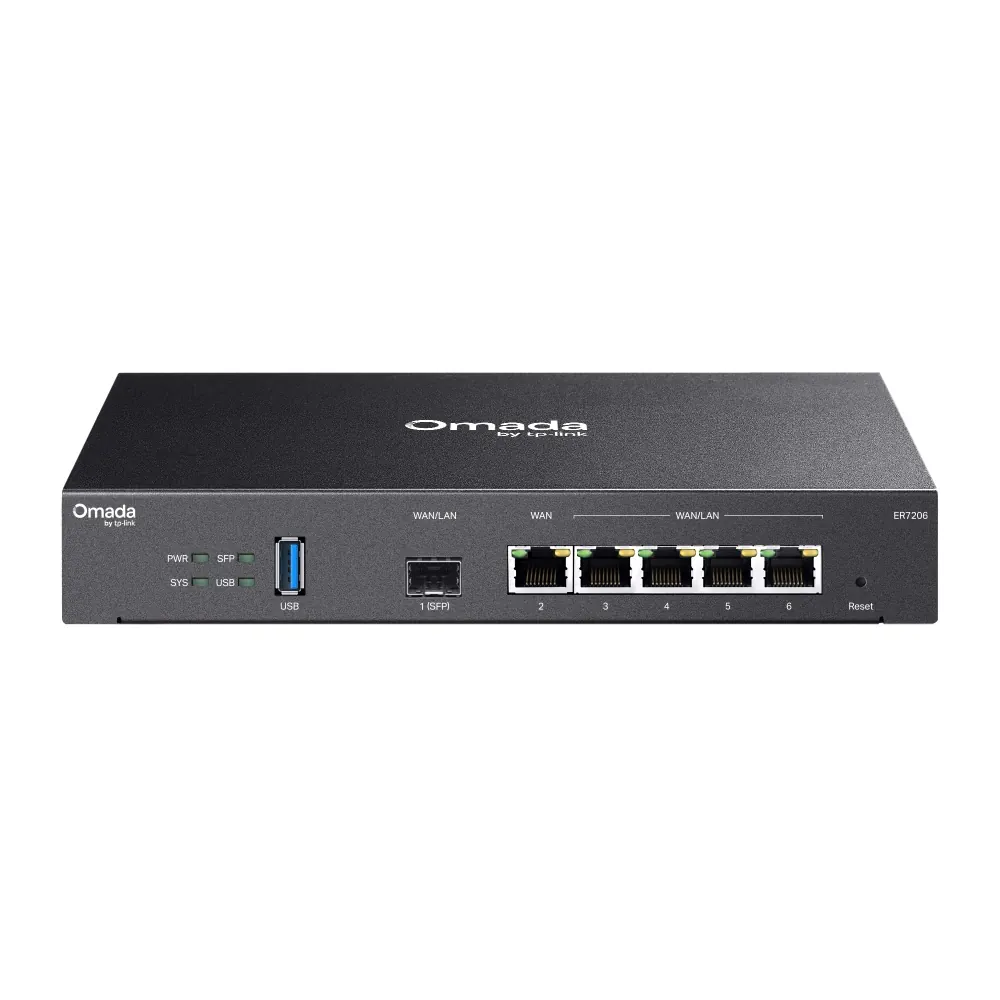

Omada (ER7206) Gigabit VPN Gateway
Original price was: RM1,099.RM999Current price is: RM999.
- 1× Gigabit SFP WAN/LAN port
- 5× Gigabit RJ45 ports (1× WAN, 4× WAN/LAN)
- 1× USB 3.0 port (Supports USB storage, and LTE backup with LTE dongle)
- Load Balancing on up to 5 WAN ports raises the utilization rate of multi-line broadband
- High-security SSL / IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
- Centralized cloud management via the web or the Omada app*
- DoS/DDoS Protection, IP/MAC/Location/URL filtering, DPI, and IPS/IDS for enhanced security.
- Desktop/Wall/Rackmount
28
People watching this product now!
Description
Reviews (0)
Only logged in customers who have purchased this product may leave a review.
Specifications
| SECURITY | |
|---|---|
| DPI | • Deep Packet Inspection • Support 2421 type Applications |
| IDS/IPS | Signature-based IPS/IDS threat detection |
| Access Control | • Source/Destination IP Based ACL • Stateful ACL • IPv4/IPv6 ACL • National Based ACL • FQDN |
| DNS Proxy | DNSSEC, DoH, DoT, and DNS Override |
| Filtering | • Web Group Filtering§ • URL Categoroies and URLs Filtering • Web Security§ |
| ARP Inspection | • Sending GARP Packets • ARP Scanning§ • IP-MAC Binding • ARP Detection |
| Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q, TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP, LLDP |
| Interface | • 1 Gigabit SFP WAN/LAN Port • 1 Gigabit WAN Port • 4 Gigabit LAN/WAN Ports • 1 USB 3.0 Port (supports USB LTE dongle and USB storage) |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Fan Quantity | Fanless |
| Button | Reset Button |
| Power Supply | 12V/1A DC Power Adapter |
| PoE Budget | - |
| Flash | 128 MB NAND |
| DRAM | 512 MB DDR4 |
| LED | PWR, SYS, SFP, USB, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act) |
| Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) |
| Protection | 4 kV surge protection |
| Enclosure | Steel |
| Mounting | Desktop/Wall/Rackmount |
| Max. Power Consumption | 7.5 W (with USB 3.0 connected) 4.5 W (without USB 3.0 connected) |
| PERFORMANCE | |
|---|---|
| IPS Throughput | TCP: 918 Mbps UDP: 920 Mbps |
| DPI Throughput | TCP: 933 Mbps UDP: 927 Mbps |
| GRE | Unencrypted: 1094.2 Mbps Encrypted: 702.2 Mbps |
| WireGuard VPN | 341.3 Mbps |
| Concurrent Session | 150,000 |
| New Sessions /Second | 4,600 |
| NAT (Static IP) | 945.3 Mbps / 940.5 Mbps |
| NAT(DHCP) | 939.6 Mbps / 940.9 Mbps |
| NAT(PPPoE) | 943.6 Mbps / 940.9 Mbps |
| NAT (L2TP) | 908.6 Mbps / 918.4 Mbps |
| NAT (PPTP) | 906.2 Mbps / 915.9 Mbps |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 885.3Mbps • ESP-SHA256-AES256: 844.8 Mbps • ESP-SHA384-AES256: 868.5 Mbps • ESP-SHA512-AES256: 849.5 Mbps |
| OpenVPN | 139.1 Mbps |
| L2TP VPN Throughput | Unencrypted: 1422.4 Mbps Encrypted: 686.2 Mbps |
| PPTP VPN Throughput | Unencrypted: 1356.1 Mbps Encrypted: 205.1 Mbps |
| SSL VPN Throughput | 131.6 Mbps |
| 66 Byte Packet Forwarding Rate | 1,453,489 pps / 1,453,488 pps |
| 1,518 Byte Packet forwarding rate | 81,279 pps / 81,275 pps |
| BASIC FUNCTIONS | |
|---|---|
| LAN DNS | √ |
| WAN Connection Type | • Static IP • Dynamic IP • PPPoE(supports MRU Configuration) • PPTP • L2TP |
| MAC Clone | Modify WAN/LAN MAC Address† |
| DHCP | • DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP • WAN DHCP 60 |
| Stateful ACL | √ |
| Quality of Service | √ |
| Bridge VLAN | √ |
| IPv6 | StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| Advanced Features | |
|---|---|
| Advanced Routing | • Static Routing • Policy Routing • RIP§ • OSPF§ |
| Bandwidth Control | IP-based Bandwidth Control |
| Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing, Failover) • Online Detection |
| NAT | • One-to-One NAT • Multi-Net NAT • Port Forwarding • Port Triggering§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP • Disable NAT |
| Session Limit | IP-based Session Limit |
| VPN | |
|---|---|
| GRE | √ (Only in Standalone Mode) |
| SD-WAN | √ (Only in Controller Mode) |
| SSL VPN | 50 Tunnels |
| IPsec VPN | • 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server • PPTP VPN Client (10)※ • 50 Tunnels • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server • L2TP VPN Client (10)※ • 50 Tunnels • L2TP over IPSec |
| OpenVPN | • OpenVPN Server • OpenVPN Client (5)※ • 55 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode |
| WireGuard VPN | √ |
| AUTHENTICATION | |
|---|---|
| Web Authentication | • No Authentication • Simple Password‡ • Hotspot (Local User /Voucher‡/ SMS‡/Radius‡) • External Radius Sever • External Portal Sever‡ • LDAP§ |
| Management Features | |
|---|---|
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Central (Cloud-Based), or Omada Software Controller. |
| Centralized Management | • Omada Central (Cloud-Based) • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Central (Cloud-Based), or Omada Software Controller. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute) • NTP Synchronize§ • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support |
| Zero-Touch Provisioning | √ |
| Management Features | • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |

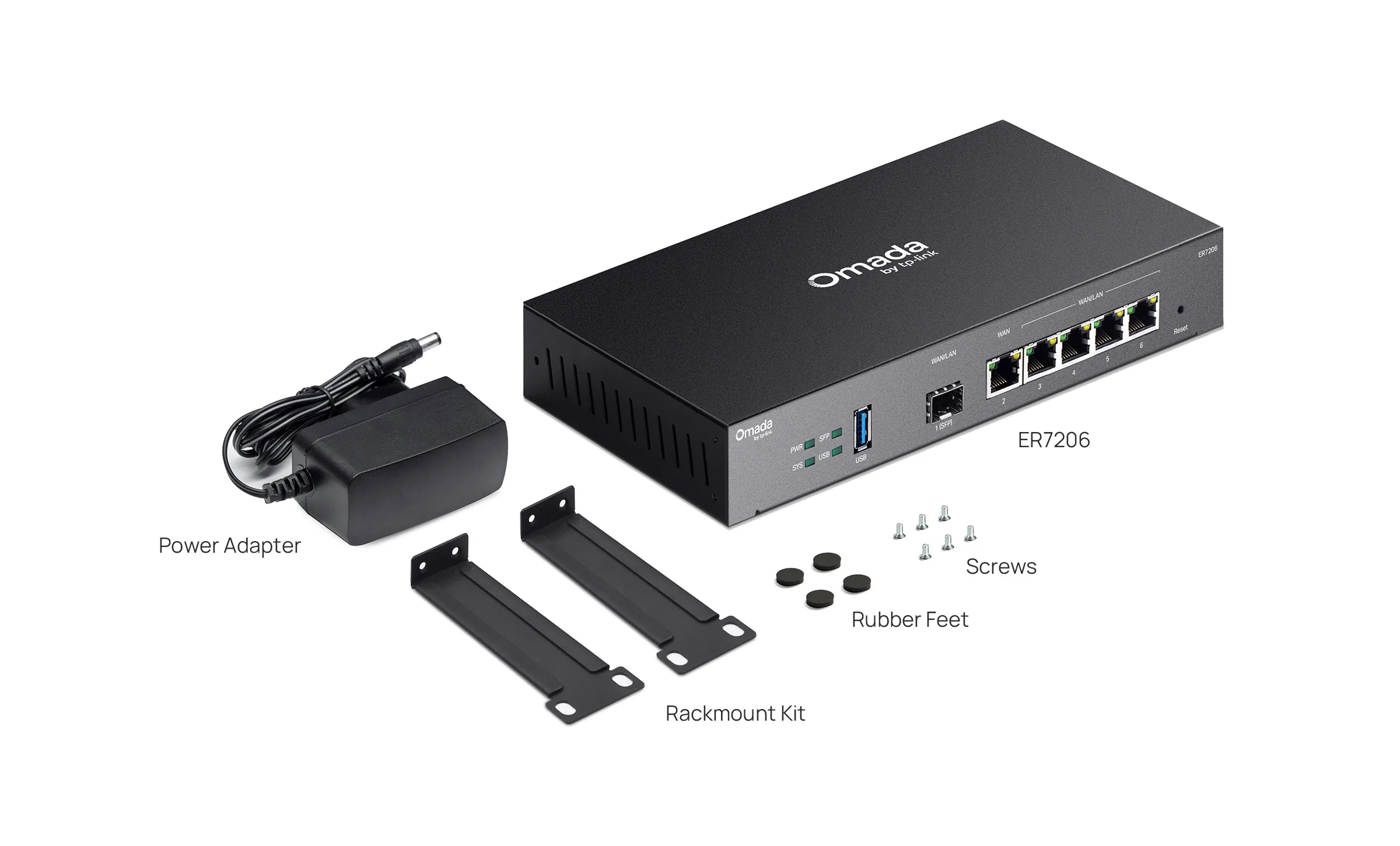

| Package Content | • ER7206 • Power Adapter • Quick Installation Guide • Rackmount Kit |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing |

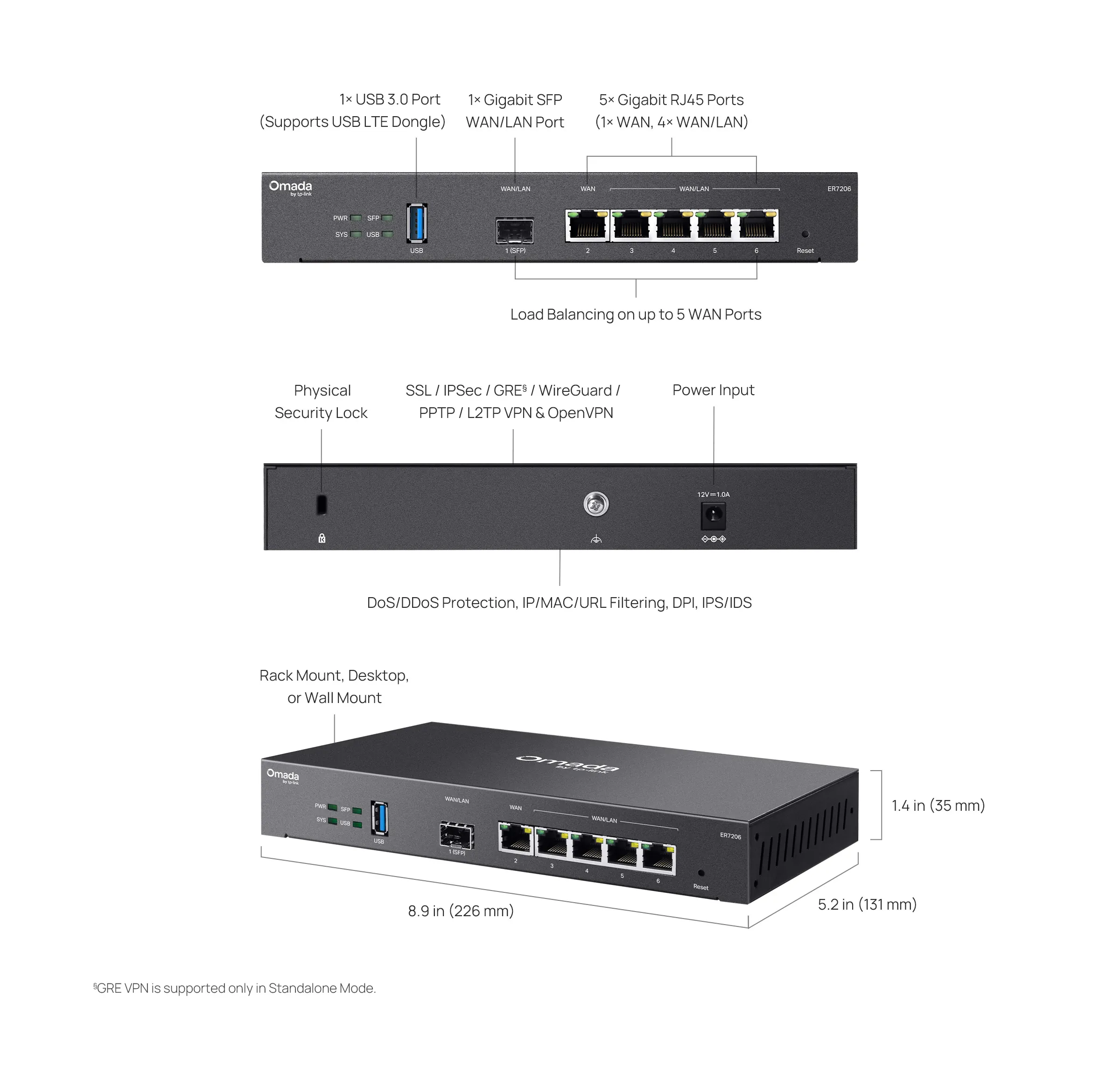

Build Features
